Metal Shell Medium Base sockets
1-SLOT SHELL
for Key, Pull-Chain
and Turn-Knob Sockets

D02-4-515        Nickel
D02-4-516Satin Nickel
D02-4-520Polished Gilt
D02-4-523Polished Brass
D02-4-551Polished Brass-UNO*
D02-4-7523     Polished Brass
                        (Leviton Brand)
D02-4-7551     Polished Brass-UNO*
                        (Leviton Brand)
2-SLOT
PUSH-THRU SHELL

D02-4-521Polished Gilt
D02-4-524       Brass
D02-4-7524     Polished Brass
                        (Leviton Brand)
SHORT KEYLESS SHELL

D02-4-512Satin Nickel
D02-4-519       Nickel
D02-4-522Polished Gilt
D02-4-525Polished Brass
D02-4-550Polished Brass-UNO*
D02-4-7525      Polished Brass
                         (Leviton Brand)
D02-4-7550      Polished Brass-UNO*
                         (Leviton Brand)

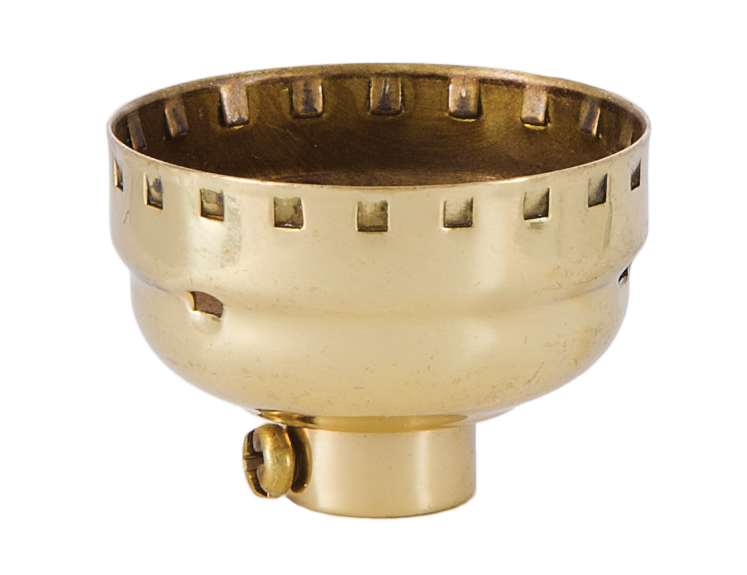

METAL SHELL CAP
FEMALE THREADED BUSHING
SET SCREW THREADED #8-32
Cap Tapped 1/8 IPS

WITH SET SCREW
D02-4-530Polished Gilt
D02-4-532Polished Brass
D02-4-533        Nickel
D02-4-539Satin Nickel
D02-4-7532      Polished Brass
                        (Leviton Brand)


CAP TAPPED 1/4 IPS
WITH SET SCREW
D02-4-531Polished Brass
D02-4-535Polished Gilt
D02-4-7531     Polished Brass
                       (Leviton Brand)
SIDE OUTLET CAP
9/32" INSULATED
SIDE BUSHING
Cap Tapped 1/8 IPS

WITH SET SCREW
D02-4-270Polished Gilt
METAL SHELL CAP
CAP TAPPED 1/8 IPS
WITHOUT SET SCREW

D02-4-536Polished Gilt
SWIVEL BRACKET
CLEARANCE FROM CENTER
OF BOLT TO CAP 5/8". CORD Hole Through Cap is 3/8"
1/8 IPS Brass Nipple

D02-4-538Brass Plated
UNO. Refers to UNO Thread for UNO shades, also allows the adaptation of a shade holder for 2 1/4 fitter glass shades.
This page was last updated: August 3, 2017
H005
Page
Best if viewed with 1024 resolution!!!!
Lock Nut UNO Tread
Locks EURO Style shades 5/32" thick 1 41/62" otter diameter

D02-4-696Unfinished
D02-4-696AL  Antiqued and Lacq
D02-4-696BL  Brushed and Lacq
D02-4-696PL  Polished and Lacq
Lock Nut UNO Tread
Locks EURO Style shades 5/32" thick
1 41/62" otter diameter

C02-DA-696-01      Polished and Lacq
C02-DA-696-20      Nickel Plated
C02-DA-696-30      Antiqued and Lacq
C02-DA-696-50      Black
