Phenolic Candelabra Sockets and Rings
This page was last updated: October 30, 2017

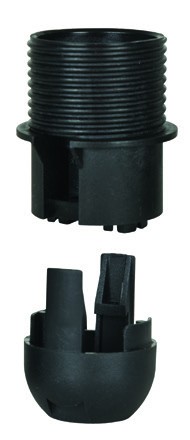

2-Piece Keyless
Threaded Phenolic Candelabra Base
U.S. (E12)
Socket Half Threaded Top Slips 1 1/16" Height 1 5/8" Diameter 1 3/8"
1/8IP Threaded Phenolic Cap
Quick Connect

D02-4-2554-RP-WHT       White
D02-4-2554-RP-BLK        Black
D02-4-2554-RP-GOLD     Gold

(Rings sold Separately below)
Phenolic Ring
Outside Diameter 1 11/16"
Fits D02 S05 AND W05

D02-4-2563WHT       White
D02-4-2563BLK        Black
D02-4-2563GOLD     Gold
Phenolic Ring
Outer Diameter 1 3/8" (35MM)
Fits D02 S05 and Italian 3200 3350

C02-DE-2548-40        White
C02-DE-2548-50        Black

Below fit W05 series
W05-D3000WHT      White
W05-D3000BLK       Black
W05-D3000GOLD     Gold
Phenolic Ring
Outside Diameter 1 3/4"
Fits D02 S05 Italian 3200 3350

C02-DE-2549-40              White
C02-DE-2549-50              Black
C02-DE-2549-50GOLD     Gold
Page
H012-2
Best if viewed with 1024 resolution!!!!
Phenolic Ring
Height  9/16"
Outside Diameter 1 7/8"
Fits D02 S05 and Italian 3200 3350

C02-DE-2549XL-40        White
C02-DE-2549XL-50        Black

Below fit W05 series
W05-32WHT       White
W05-32BLK        Black
W05-32GOLD     Gold

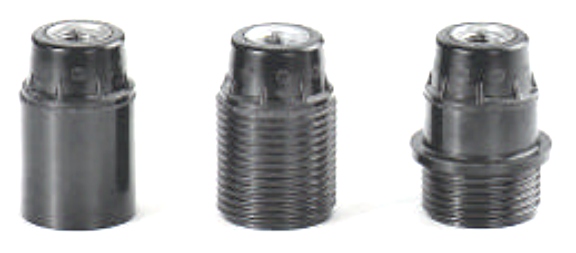

3-Piece Keyless
Threaded Phenolic Candelabra Base Socket Threaded Top Slips 1 1/16" Without Threaded Ring
1/8IP With Set Screw and metal base insert
1 5/8" overall height

Smooth skirt
W05-3175/E12/U-WHT     White
W05-3175/E12/U-BLK      Black
W05-3175/E12/U-GOLD     Gold

Full Thread
W05-3200/E12/U-WHT      White
W05-3200/E12/U-BLK       Black
W05-3200/E12/U-GOLD    Gold

Half Thread
W05-3350/E12/U-WHT       White
W05-3350/E12/U-BLK        Black
W05-3350/E12/U-GOLD     Gold

Above Sockets Can Also Be Ordered E14 EURO and B15 UK (Britain)

(Ring sold Separately below)

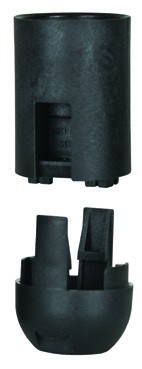

3-Piece Keyless Phenolic
Smooth Candelabra Base Socket
U.S. (E12)
Height 1 5/8" Diameter 1 1/16"
1/8IP Threaded Phenolic Cap
Quick Connect

D02-4-2553WHT      White
D02-4-2553BLK        Black
D02-4-2553GOLD     Gold

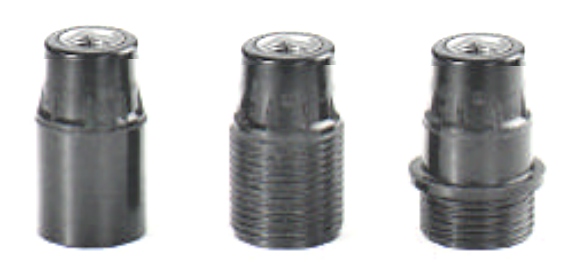

3-Piece Keyless
Threaded Phenolic Candelabra Base Socket Threaded Top Slips 1 1/16" Without Threaded Ring
Longer 1/8IP With Set Screw and metal base insert 1 7/8" overall height

Smooth skirt
W05-3175/E12/H19/U-WHT     White
W05-3175/E12/H19/U-BLK       Black
W05-3175/E12/H19/U-GLD   Gold

Full Thread
W05-3200/E12/H19/U-WHT       White
W05-3200/E12/H19/U-BLK        Black
W05-3200/E12/H19/U-GOLD     Gold

Half Thread
W05-3350/E12/H19/U-WHT       White
W05-3350/E12/H19/U-BLK        Black
W05-3350/E12/H19/U-GOLD     Gold

Above Sockets Can Also Be Ordered E14 EURO and B15 UK (Britain)

(Ring sold Separately below)

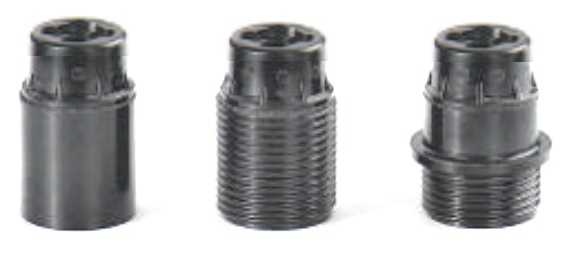

3-Piece Keyless
Threaded Phenolic Candelabra Base Socket Threaded Top Slips 1 1/16" Without Threaded Ring
1/8IP tapped Phenolic Cap
1 5/8" overall height

Smooth skirt
W05-3175/E12/G-WHT       White
W05-3175/E12/G-BLK        Black
W05-3175/E12/G-GOLD     Gold

Full Thread
W05-3200/E12/G-WHT      White
W05-3200/E12/G-BLK       Black
W05-3200/E12/G-GOLD    Gold

Half Thread
W05-3350/E12/G-WHT       White
W05-3350/E12/G-BLK        Black
W05-3350/E12/G-GOLD     Gold

Above Sockets Can Also Be Ordered E14 EURO and B15 UK (Britain)

(Ring sold Separately below)
Other Colors Are Available
Rands Creative Creations   Harold Rand Enterprises
3729 Freeman Rd Jacksonville FL 32207
Ph 904 398 7925      Fax 904 396 6512
cs@hrelampparts.com

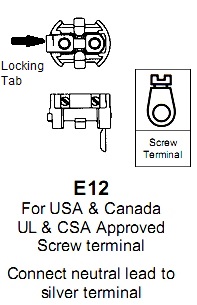

To seperate socket ensure power is
off at the source, ie cord is unpluged or circuit breaker is off, if you are unsure get a qualified person to do this for you!
Bend locking tab down to release shell from the socket cap
2-Piece Keyless
Threaded Phenolic Candelabra Base
U.S. (E12)
Socket full Threaded Top Slips 1 1/16"
(Shown with ring)
Height 1 5/8" Diameter 1 3/8"
1/8IP Threaded Phenolic Cap
Quick Connect

S05-8A1650            White
D02-4-2554BLK       Black
D02-4-2554Gold     Gold
