Pulse Rated Medium Porcelain Sockets
This page was last updated: August 5, 2017
MEDIUM BASE LAMP HOLDER
4 KV PULSE RATED
GLAZED PORCELAIN
FOR USE WITH HIGH INTENSITY
DISCHARGE LAMPS
COPPER-ALLOY,
NICKEL PLATED SCREW SHELL
Two #6-32 Captive Screws
27/32" Centers
Rated 660W - 600V

D02-4-2609        9" SF-2 Leads
D02-4-7609        9"    (Leviton Brand)
S02-8A1689     18" SF-2 Leads
S02-8A1700     36" SF-2 Leads
Page
H018
Best if viewed with 1024 resolution!!!!

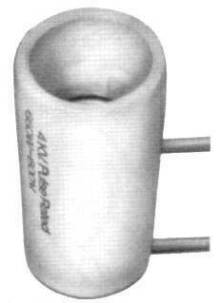

MEDIUM BASE EXTENDED BODY LAMP HOLDER
4 KV PULSE RATED
PORCELAIN
FOR USE WITH OPEN FIXTURE MEDIUM BASE LAMPS
200 Degree Leads
Two #6-32 Captive Screws
Rated 660W - 600V

M02-11-70051

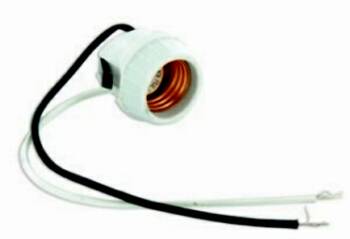

MEDIUM LAMP HOLDER
4 KV PULSE RATED
PORCELAIN SNAP-IN SOCKET
Rated 660W - 600V

Leviton 18876
B02-E8107-4KV  9" 200 Degree Leads

S05-8A1674 9" 200 Degree Leads
MEDIUM BASE LAMP HOLDER
4 KV PULSE RATED PORCELAIN
#18 AWGSF-2 200° leads
Rated 660W - 600V

9" Leads
M02-11-70045           (2)  #6-32  Bushings Leviton
M02-11-70045F        (2)  #6-32  Bushings  Import

36" Leads
M02-11-70045-36F  (2)  #6-32  Bushings  Import
Medium Base Socket
Heavy Duty glazed Porcelain
Copper-Alloy 4KV Pulse Rated
1 7/8" Diameter 2 3/8" Height
Screw are 1 1/4" Center to Center
Rated 660 Watts - 600 Volts

S05-8A1793
Porcelain
Medium Base Threaded Socket
Copper-Alloy Nickel Plated Screw Shell
Screw Terminals
2 Captive Screws #6-32,
With Metal Ring (Shade holder)
4KV Pulse Rated

1/8IP Metal Cap
S05-8A1647   W/E

1/4IP Metal Cap
S05-8A1647-1/4   W/E
