Phenolic Fixture Cluster Sockets
This page was last updated: July 8, 2019

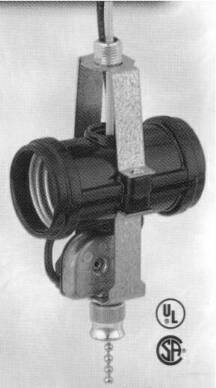

PHENOLIC
MEDIUM BASE SOCKET
ON/OFF PULL-CHAIN
BACK TO BACK
BRACKET HEIGHT 3-1/2"
1/8M Top
6" 105° LEADS
Rated 660W - 250V

D02-4-607

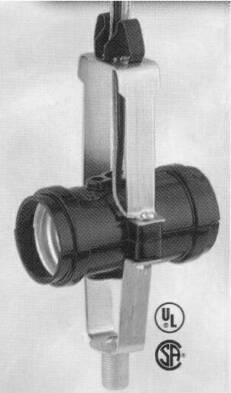

PHENOLIC MEDIUM BASE SOCKET SWITCHLESS SNAP-IN BACK TO BACK
BRACKET HEIGHT 4-1/8"
1/8M Bottom
6" 105° Leads
and Ground Wire
Rated 660W - 250V

D02-4-602

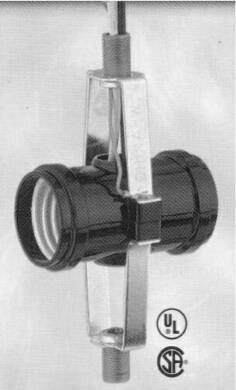

PHENOLIC MEDIUM BASE SOCKET SWITCHLESS
BACK TO BACK BRACKET HEIGHT 3-5/8"
1/8M x 1/8M
6" 105° LEADS
and Ground Wire
Rated 660W - 250V

D02-4-605
Page
H022
Best if viewed with 1024 resolution!!!!

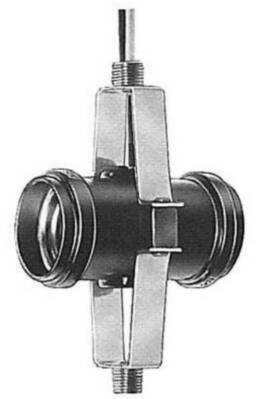

PHENOLIC MEDIUM BASE SOCKET SWITCHLESS
BACK TO BACK BRACKET HEIGHT 4"
1/8M x 1/8M
9" 105° LEADS
Rated 660W - 250V

B02-E8231

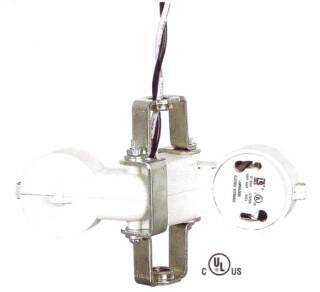

ADL PET GU-24 SOCKET
2-LIGHT Cluster Bracket Height 3-1/4"
1/8IP female top and bottom, 9" 105° Leads Rated 660W - 250V

D02-4-604

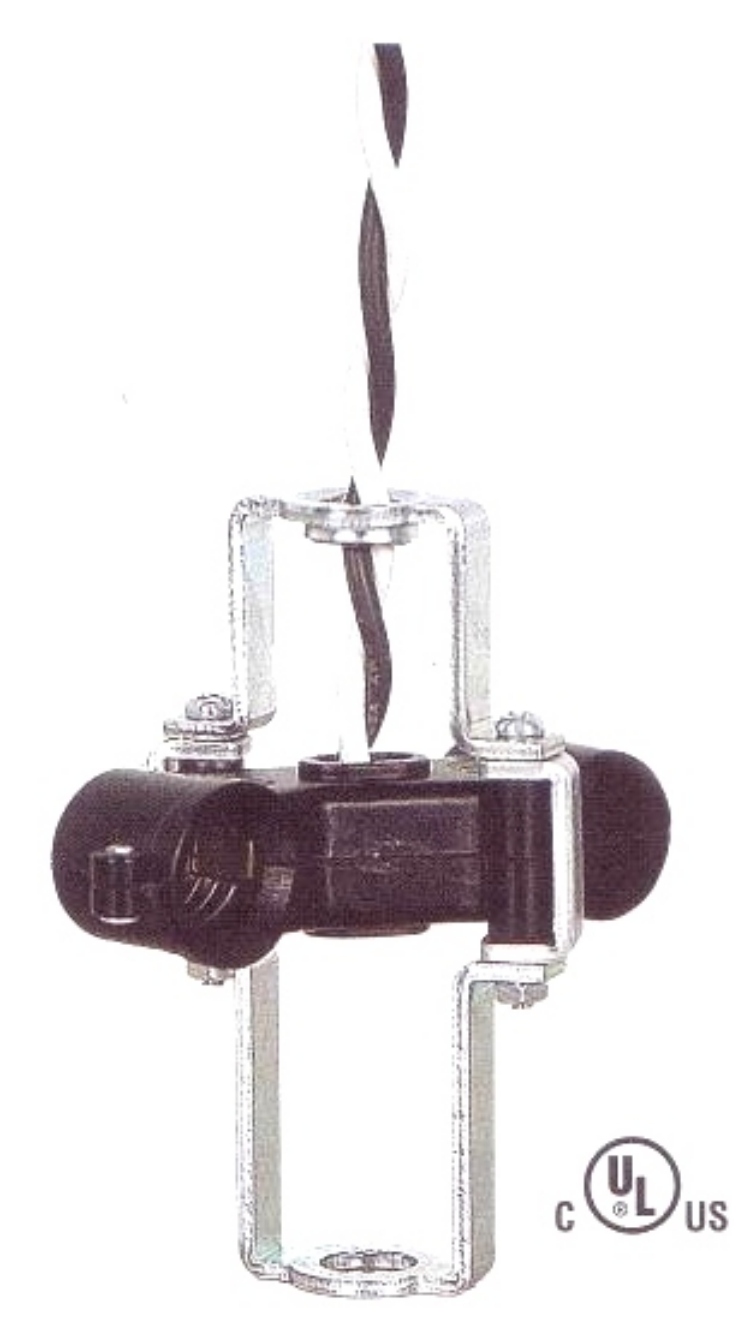

PHENOLIC
CANDELABRA BASE SOCKET
2-LIGHT Cluster Bracket Height 3-1/16"
1/8IP female top and bottom Slips 1/8 IP, 9" 105° Leads Rated 75W - 125V

D02-4-620
2 Lite Cluster Mounting Base
WE GU-24 Socket
1/8 IP top and bottom UL
S02-WESS12-1A    18 AWG or 16 AWG AWM Wire
2 Lite Cluster Mounting Base
WE GU-24 Socket With Pull Chain On/Off
1/8 IP top and bottom UL
S02-WESS12-1B    18 AWG or 16 AWG AWM Wire

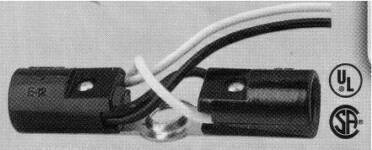

TWIN BULLET CANDELABRA BASE
PHENOLIC CLUSTER SOCKET
DIAMETER 3-5/8" FLAT BRACKET
1/8F IPS CENTER MOUNT
8" 105° Leads

D02-4-452
TWIN BULLET CANDELABRA BASE
PHENOLIC CLUSTER SOCKET
DIAMETER 3-5/8" OFFSET BRACKET
1/8F IPS CENTER MOUNT
8" 105° Leads

C02-DE-0452-12
TWIN BULLET CANDELABRA BASE
PORCELIN CLUSTER SOCKET
DIAMETER 3-5/8" OFFSET BRACKET
1/8F IPS CENTER MOUNT
8" 105° Leads

C02-DE-0452-12
