Phenolic Candelabra Base Sockets
This page was last updated: October 10, 2017
CANDELABRA BASE SOCKET
1/8 IPS HICKEY

Single Leg (Shown)
                    Height 1-3/4"
D02-4-212     6" 105° Leads
D02-4-225   12" 105° Leads
D02-4-226   18" 105° Leads
D02-4-227   24" 105° Leads
D02-4-228   30" 105°Leads

Double Leg (Not Shown)
                    Height 1-3/4"
S05-8A1300     26" 105° Leads
S05-8A1398     36" 105° Leads
S05-8A1344    48" 105° Leads
Page
H024-1
CANDELABRA BASE SOCKET
Single Leg 1/8 IPS Hickey

4" Height
M02-11-10017-204F        24" 105° Leads

With Nipple 3/8" Long
M02-11-10017-204F-N        11" 105° Leads

CANDELABRA BASE SOCKET
HEIGHT 1-3/4"
1I8 IPS MALE THREAD
6" 105" Leads

HEIGHT 1-3/4"
D02-4-208        6" 105" Leads
D02-4-225-N   12" 105° Leads
D02-4-226-N   18" 105° Leads
D02-4-227-N   24" 105° Leads
D02-4-228-N   30" 105°Leads

Double Leg (Not Shown)
                    Height 1-3/4"
S05-8A1300-N     26" 105° Leads
S05-8A1398-N     36" 105° Leads
S05-8A1344-N    48" 105° Leads
CANDELABRA BASE SOCKET
HEIGHT 1-3/4"
BRACKET TAPPED #6-32
6" 105° Leads

D02-4-211
CANDELABRA BASE SOCKET
Pigtail
6" 105° Leads

B02-E8800

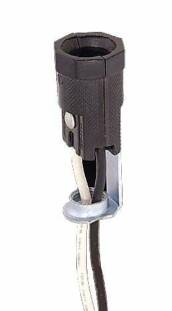

CANDELABRA BASE SOCKET
1/8 IPS HICKEY
Height  2"

B02-E8313         9" 105° Leads

With Nipple 3/8" Long
B02-E8313-N          9" 105° Leads
Best if viewed with 1024 resolution!!!!
CANDELABRA BASE SOCKET
Quick Connect Socket
Only for use with fully tinned cords, Push cord end into holes shown by arrows.
Bracket threaded 1/8 IP.
U.L./C.S.A. listed rated 75W

            Overall Height

S05-8A1312-1.75        1 3/4"
S05-8A1312                  2"
S05-8A1718                  4"
S05-8A1719                  6"
CANDELABRA BASE SOCKET  Double Leg 1/8 IPS Hickey

3" Height
S05-8A1301     26" 105° Leads

With Nipple 3/8" Long
S05-8A1301-N  26" 105° Leads
