Phenolic Threaded Candelabra Base Sockets and Harness
This page was last updated: August 10, 2017
Page
H024-2

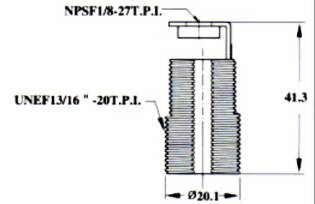

CANDELABRA BASE SOCKET
Fully Threaded With Shade Ring
Bracket threaded 1/8 IP.
U.L./C.S.A. listed rated 75W

Quick Connect (Note)
S05-8A1294           Overall Height  1 5/8"
S05-8A1303           Overall Height        2"
S05-8A1304           Overall Height        3"
S05-8A1305           Overall Height        4"

Note: Above only for use with fully tinned cords or wire!

Above with leads installed
ADD -12     12" Leads 105 Degree 18 Gauge
ADD -24     24" Leads 105 Degree 18 Gauge
ADD -36     24" Leads 105 Degree 18 Gauge

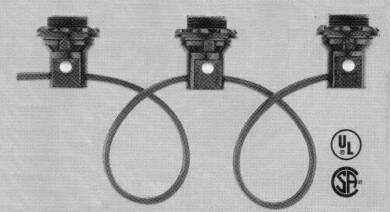

CANDELABRA BASE  PHENOLIC SOCKET
Black Rings included

3 Lite
SPT-1 18/2 Brown Wire 105°
S05-8A1474    6" Socket to Socket (18" Tail Lead)
D02-4-450 7" Socket to Socket (12" Tail Lead)

AWM 18/2 White and Black Wire 150°
S05-8A1912    9" Socket to Socket (18" Tail Lead)

4 Lite
SPT-1 18/2 Brown Wire 105°
D02-4-451         7" Socket to Socket (12" Tail Lead)


SPT-1 18/2 Black Wire 105°
1-500 Cut to Order or Whole String

W05-8421B-3-500/PR        3" Socket to Socket ( 2" Tail Lead)
W05-8421B-12-500/PR    12" Socket to Socket (10" Tail Lead)
W05-8421B-7-500/PR        7" Socket to Socket (6" Tail Lead)
W05-8421B-9-500/PR        9" Socket to Socket (9" Tail Lead)

Others Socket to Socket  lengths can be special ordered approximately 90 days from date ordered

Above items can be assembled with cords, switches, dimmers, etc.
HARNESS SET
CANDELABRA RINGS

Plastic
D02-4-457                   Black
D02-4-458                   Vacuum Brass
G03-3210/E12/6VC   Vacuum Chrome

Brass 1" OD 3/4" ID 1/8" Thick & height
S05-8A1485                Unfinished
S05-8A1485BL           Antiqued and Lacq
S05-8A1485BL           Brushed and Lacq
S05-8A1485PL           Polished and Lacq
S05-8A1486                Chrome Finish
CANDELABRA BASE SOCKET
With Phenolic Ring
Height 1-3/4" 1/8 IP hickey
Rated 75W 125V

G03-3210/E12/6”       6" 105° Leads
S05-9A1557               8" 105° Leads
G03-3210/E12/30”   30" 105° Leads
Best if viewed with 1024 resolution!!!!
CANDELABRA BASE PHENOLIC SOCKET
Black Rings included

1 Lite
SPT-1 18/2 Brown Wire 105°
D02-4-221 (12" Lead)
S05-8A1473    (24" Lead)

SPT-2 18/2 Brown Wire 105°
S05-8A1694     (24" Tail Lead)

AWM 18/2 White and Black Wire 105°
S05-9A1556(8" Lead)
CANDELABRA BASE
w/Shoulder and Phenolic Ring
6 Ft.18/2 SPT-1 105°C Brown Wire & Plug With Brown Switch 21" from Socket   75W-125V

S05-8A1693

6 Ft.18/2 SPT-2 105°C Brown Wire & Plug

S05-8A1694                    Without Switch
S05-8A1694-9A574    With Brown Switch 21" from Socket
S05-8A1694-9A821      With Brown Hi/LOW 21" from Socket
Rands Creative Creations   Harold Rand Enterprises
3729 Freeman Rd Jacksonville FL 32207
  904 398 7925
