Cluster Heads and Assemblies
This page was last updated: August 10, 2017

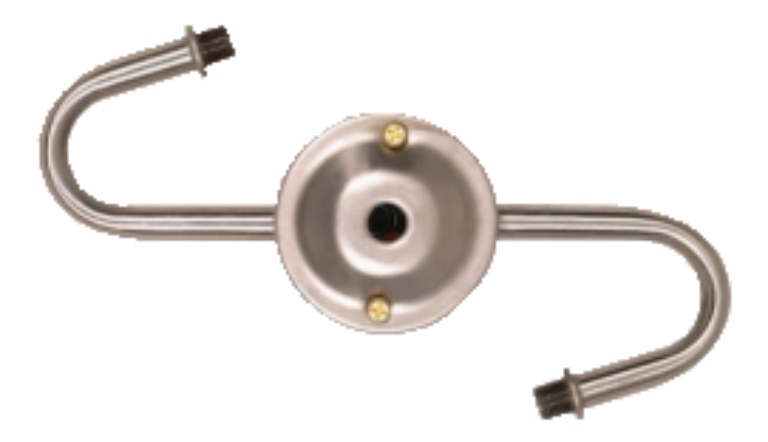

2-LIGHT "S" ARM CLUSTER BODY
Steel
Body Diameter 2" • Spread 7"
Top Cap Has 2 Set Screws
1/8 IPS Top HOLE
1/4 IPS Bottom Hole

D02-1-673    Brass Glit
D02-1-674    Antiqued Brass Finish
S05-8A1636       Nickel Finish
S05-8A1161       Unfinished
2-LIGHT "S" ARM CLUSTER ASSEMBLY
Bright Glit With Keyless Sockets
7 5/8" Across
1/8IP Female Top and 1/4IP Female Bottom

18" 18/2 SPT-2 105°C Gold Wire Lead
B02-10408K

With 15' SPT-2 Cord and Snap-on Plug
B02-A0408KCL       Clear Silver
B02-A0408KBK       Black
B02-A0408KBN       Brown
B02-A0408KGD       Clear Gold
B02-A0408KWH      White
H028-2
Page
Best if viewed with 1024 resolution!!!!

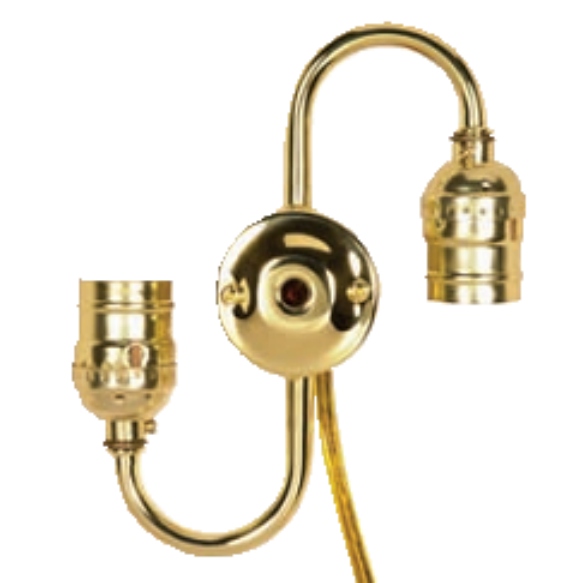

2-LIGHT "S" ARM CLUSTER ASSEMBLY
Bright Glit With Keyless Sockets
7 5/8" Across, Internal Wire–18 AWM 105°C
1/8IP Female Top and 1/8IP Female Bottom

14" 18/2 SPT-2 105°C Gold Wire Lead
S05-8A1189

With 15' 18/2 SPT-2 Cord and Snap-on Plug
S05-8A1189CL       Clear Silver
S05-8A1189BK       Black
S05-8A1189BN       Brown
S05-8A1189GD       Clear Gold
S05-8A1189WH      White

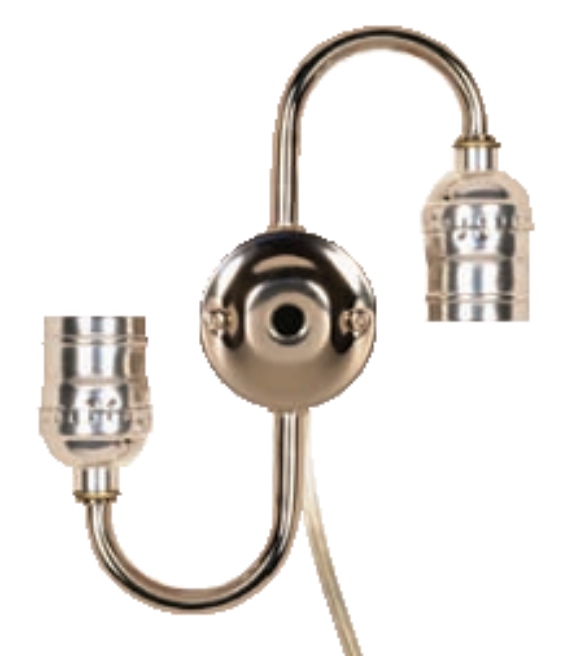

2-LIGHT "S" ARM CLUSTER ASSEMBLY
Nickel Finish With Keyless Sockets
7 5/8" Across, Internal Wire–18 AWM 105°C
1/8IP Female Top and 1/8IP Female Bottom

14" 18/2 SPT-2 Gold Wire Lead
S05-8A1272

With 15' 18/2 SPT-2 Cord and Snap-on Plug
S05-8A1272CL       Clear Silver
S05-8A1272BK       Black
S05-8A1272BN       Brown
S05-8A1272GD       Clear Gold
S05-8A1272WH      White

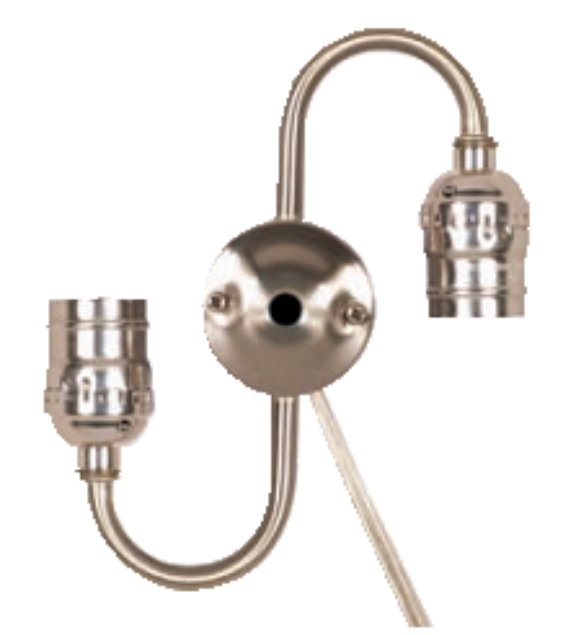

2-LIGHT "S" ARM CLUSTER ASSEMBLY
Satin Nickel Finish With Keyless Sockets
7 5/8" Across, Internal Wire–18 AWM 105°C
1/8IP Female Top and 1/8IP Female Bottom

14" 18/2 SPT-2 Gold Wire Lead
S05-8A1271

With 15' 18/2 SPT-2 Cord and Snap-on Plug
S05-8A1271CL       Clear Silver
S05-8A1271BK       Black
S05-8A1271BN       Brown
S05-8A1271GD       Clear Gold
S05-8A1271WH      White
