Line Switches
This page was last updated: October 25, 2017

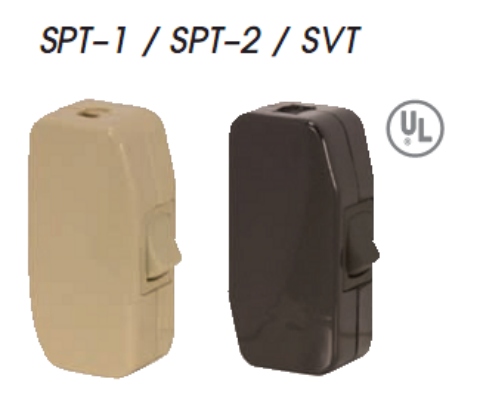

FEED-THRU SWITCH
SINGLE POLE HEAVY DUTY
FOR USE WITH SPT-1, SPT-2, 18/2 SVT  and Other up to 9/32 Maximum outer Diameter Round Style Wire
Rated 3A-125V 1/2HP-125V

S05-9A433 Brown
S05-9A434 Ivory
D02-4-179    White
LISTED PRODUCT: A product that has been produced under underwriter lab's listing and follow-up service and that bears the authorized listing mark of U. L. as the manufacturer's declaration that the product complies with U.L.'s requirements in accordance with the terms of the follow-up service agreement.

RECOGNIZED COMPONENT: A part or sub-assembly covered under U.L.'s recognition service and intended for use in listed, classified, or recognized products. a recognized component is incomplete in construction features or restricted in performance capability so that determination by U. L. of its acceptability in a product is necessary.

CERTIFIED PRODUCT: A product that has been produced under canadian state approval and follow-up service and that bears the authorized certification mark of C.S.A. as the manufacturer's declaration that the product complies w1th C.S.A.'s requirements in accordance with the terms of the follow-up service agreement.

SPT-1: is no longer approved for external wiring of table and floor lamps or lighting fixtures, SPT-2 and SVT are approved.

NON-LISTED COMPONENT: many items shown in this catalog are not listed or recognized by underwriters laboratory. the use and suitability of these products therefore must be determined by the purchaser.

NOTE: all U.L., U.R., and C.S.A. marks shown in this catalog were verified prior to publication.
certifications are subject to change.
Page
H031
Best if viewed with 1024 resolution!!!!
Rands Creative Creations   Harold Rand Enterprises
3729 Freeman Rd Jacksonville FL 32207
Ph 904 398 7925       Fax 904 396 6512
cs@hrelampparts.com
FEED-THRU SWITCH
• Screw Terminals • Snap Together Case
• For use with SPT-1, SPT-2, SVT/2 and SVT/3 wire
• Includes connection for ground wire
Rated 3A-125V • UL LIsted

C02-EF-3092-40        White
C02-EF-3092-46        Gold
C02-EF-3092-50        Brown
FEED-THRU SWITCH
• Screw Terminals • Screw Together Case
• For use with SPT-2 wire
Rated 2A-125V • UL LIsted

C02-EF-3450-40        White
C02-EF-3450-46        Gold
C02-EF-3450-47        Clear
C02-EF-3450-50        Brown
