Dimmers Pole, Mini and Knobs
This page was last updated: August 10, 2017
LEVITON PLASTIC
DIMMER KNOB
Fits on D02-D185, D02-D186,
D02-D188 and M02-L6404

D02-4-681     Vacuum Brass Plated
D02-4-680     Black

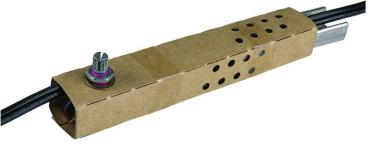

POLE LAMP DIMMER
POSITIVE ON/OFF
REPLACEMENT FOR TORCHIERE LAMP DIMMER
LENGTH 5-5/8" • WIDTH 13/16" • HEIGHT 3/4"
4" & 36" SPT-1 105° Leads

Rated 500W

D02-4-190
PLASTIC DIMMER KNOB
For DR-D190 & DR-D191 Dimmers

D02-4-400     Vacuum Brass Plated
D02-4-401     Vacuum Chrome Plated
D02-4-403     Black
MINI DIMMER
POSITIVE ON/OFF
LENGTH 1-3/4" • WIDTH 1" • HEIGHT 3/4"
Connect Leads Positive to Positive Only

Rated 200W 120 Volt
D02-4-191          4" 105° Leads

Rated 300W 120 Volt
D03-D0582       12" 105° Leads

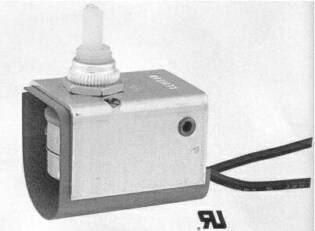

LEVITON BRAND
BUILT-IN DIMMER CONTROL
FOR LAMPS AND FIXTURES
POSITIVE ON/OFF
FULL RANGE CONTROL 0 TO 100%
FOR INCANDESCENT AND QUARTZ LAMPS
Also Designed as a Heater Control or
Radio - TV Interference Filter
7" 105° Leads - Stripped 3/4" and Tinned
Connect Leads Positive to Positive Only

    Length   Width    Height
D02-4-185       200W    1-1/2"  • 1-1/8" • 1-1/8"
D02-4-186       300W    1-1/2"  • 1-1/8" • 1-1/8"
D02-4-188       600W          2"   • 1-1/8" • 1-1/8"

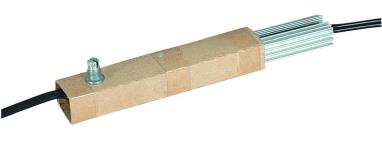

HEAVY DUTY POLE LAMP DIMMER
POSITIVE ON/OFF
REPLACEMENT FOR TORCHIERE LAMP DIMMER
HEAVY DUTY FINNED HEAT SINK
LENGTH 5-3/4" • WIDTH 7/8" • HEIGHT 3/4"
4" & 36" SPT-1 105° Leads
Longer Life Dimmer Unit
Rated 500W

D02-4-4290
BRASS KNURLED KNOB
OVERALL DIAMETER 5/8"
BARREL O.D. DIAMETER 17/32"
LENGTH 31/32"
Fits on D02-4-185, D02-4-186,
D02-4-188

D02-2-1672 Unfinished
Page
H032
More on next page!!!!!
Best if viewed with 1024 resolution!!!!

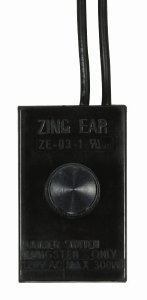

MINI DIMMER
POSITIVE ON/OFF
LENGTH 1-3/4" • WIDTH 1" • HEIGHT 3/4"
Connect Leads Positive to Positive Only


Phenolic Housing Zing Ear
Rated 300W 120 Volt
S05-8A1166     12" 105° Leads
