Bayonet Base Sockets
This page was last updated: August 11, 2017
SINGLE CONTACT BAYONET BASE SOCKET
For High Intensity And
Other Low Voltage Applications
Single Contact Base
Flat Mounting Bracket
Mounting 1" C. to C.
Rated 75W-125V

D02-4-2799    6" 105° Leads
SINGLE CONTACT BRASS  BAYONET SOCKET
NICKEL PLATED
3/8" THREAD 1/8 IPS MALE
Rated 75W-125V

D02-4-3751      60" 105° Leads

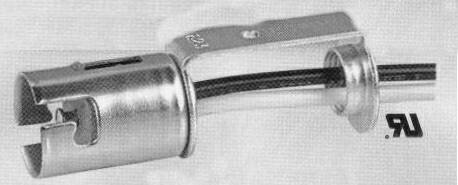

SINGLE CONTACT
BAYONET BASE SOCKET
For High Intensity And Other Low
Voltage Applications
Single Contact Base
6" 105° Leads through 1/8 IPS
Hickey
2-3/16" Overall
Rated 75W-125V

D02-4-2795
DOUBLE CONTACT
BAYONET BASE SOCKET
For High Intensity And
Other Low Voltage Applications
Double Contact Base
Flat Mounting Bracket
Mounting 1" C. to C.
Rated 75W-125V

D02-4-2796    6" 105° Leads
G03-L12         6" 200° Leads
DOUBLE CONTACT
BAYONET BASE SOCKET
For High Intensity And
Other Low Voltage Applications
Double Contact Base
6" 105° Leads through 1/8 IPS
Hickey
2-3/16" Overall
Rated 75W-125V

D02-4-2794
DOUBLE CONTACT BAYONET SOCKET
3/8" THREAD 1/8 IPS MALE

Rated 150W-125V
D02-4-3760 10" 250° TeflonLeads

Rated 75W-125V
G03-11-11      6" 200° Leads
Page
H036
Best if viewed with 1024 resolution!!!!
DOUBLE CONTACT BAYONET SOCKET
Tapped 1/8 IPS Female

Rated 75W-125V
G03-11-17      6" 200° Leads
SINGLE CONTACT BAYONET
BASE BRASS SOCKET
BA15AS  STAINLESS STEEL SPRING

D02-4-3762   50" 18/2 AWG 105°SPT-1 LEADS
D02-4-3764   50" 200°C LEADS

All Item this page can be supplied with quick connect terminals up to the lenght specified if used for low voltage applications!
