H036-1
Best if viewed with 1024 resolution!!!!
Double Contact
Zinc Plated
Bayonet Socket BA15
with Snap In bracket
12" #18 UL1015 105° Black Leads
Rated 75W-125V

G03-11-11/SI/12”

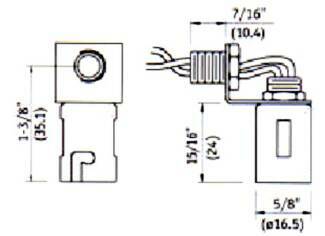

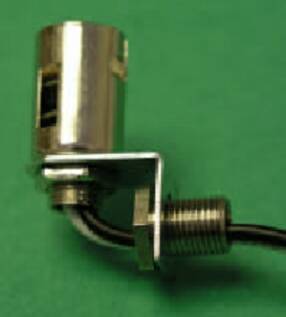

Double Contact
Zinc Plated
Bayonet Socket BA15
with L bracket 1/8 IPS
9" #18 UL1015 105° Black Leads
Rated 75W-125V

G03-11-11/L18/9”
Double Contact
Zinc Plated
Bayonet Socket BA15
with Clip On bracket
12" #18 UL1015 105° Black Leads
Rated 75W-125V

G03-11-11/CO/12”
Approval:                     E143571
UL Approved for USA: E115916
Approval:                     E143571

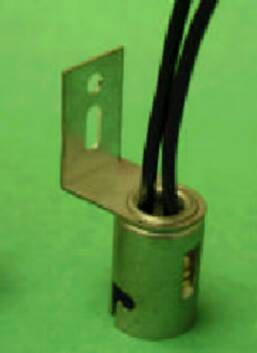

Double Contact
Zinc Plated
Bayonet Socket BA15
with L bracket
12" #18 UL1015 105° Black Leads
Rated 75W-125V

G03-11-11/L/12”
Bayonet Base Sockets
All Item this page can be supplied with quick connect terminals up to the lenght specified if used for low voltage applications!
ALL SOCKETS ON THIS PAGE ARE LIMITED STOCK
ALL SOCKETS ON THIS PAGE ARE LIMITED STOCK
