Halogen Quartz Lamp Holders
This page was last updated: August 13, 2017
QUARTZ LAMP HOLDER
For 3-1/16" LAMP (78.3mm)
SF-1 Leads
Rated 500W

D02-4-2780      10" Leads
S05-9A1078      6" Leads

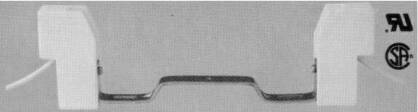

QUARTZ LAMP HOLDER
For 4-5/8" Lamp (117.6mm)
SF-1 Leads
Rated 500W

D02-4-2785       12" Leads
S05-9A1077      6" Leads
LOW PROFILE QUARTZ LAMP HOLDER
For 4-5/8" Lamp (117.6mm)
1/8" Holes - 2-3/4" Center to Center
SF-1 9" Leads
Rated 500W - 250V

D02-4-2790

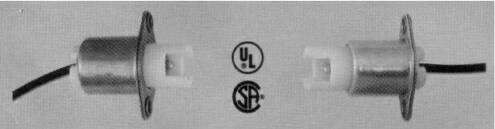

RECESSED-CONTACT QUARTZ
OR TUNGSTEN-HALOGEN LAMP HOLDERS
Compressible Two Piece  Porcelain Body
Nickel Plated Steel Housing Unit
Steel Spring Contact
Mounting Bracket is 1-1/4" Center to Center

Rated 1500W - 600V  9" SF-2 200° Leads
M02-11-554       Front Flange Mounting
M02-11-555       Rear Flange Mounting

Rated 1500W - 600V  18" SF-2 200° Leads
D02-4-2755 Front Flange Mounting
D02-4-2756 Rear Flange Mounting
QUARTZ FLANGE SOCKET
Used For "J" Type Bulb
Nickel Plated Brass With Nut
Silicone/Fiberglass 200°C
AWG
Rated 500W - 250V

S05-9A1561     6" Leads
D02-4-2565      9" Leads
S05-8A2004   18" Leads
PORCELAIN
TERMINAL BLOCK
Used For High Heat
Connections
Holes for Two Separate Sets
of Wires with Screws Rated 10A-125V

D02-4-2589
Best if viewed with 1024 resolution!!!!
Page
H038

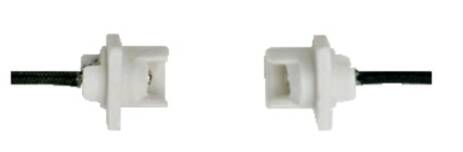

Double Ended  Halogen Socket Set
R7S Base, 12" SF–1 200°C Leads 500W–250V

S05-9A474
QUARTZ LAMP HOLDER
For 4-5/8" Lamp (117.6mm)
SF-1 Leads
Rated 500W
Flat Bracket

W05-1-JA       10" Leads
Other brackets maybe available e-mail us your requirements
LOW PROFILE QUARTZ LAMP HOLDER
For 3-1/16" LAMP (78.3mm)
1/8" Holes - 2-3/4" Center to Center
SF-1 9" Leads
Rated 500W - 250V

W05-I-2
Photo to come soon Same as right
