Fluorescent Lamp Holders
This page was last updated: March 27, 2011
THIN, RAPID-START QUICKWIRE LAMP HOLDER FOR T-8 & T-12
Each Contact Has Two Wire-Slot Terminals To Accommodate All Circuit Requirements, Including Jumper Connection For Rapid-Start Circuits For 18 GA. Solid or Stranded Wire Recess In Rear For Optional Bracket Thickness .047"
Rated 660W-600V
D02-D2690
LAMP HOLDERS
FOR U-SHAPED LAMPS
12" 18 GA. 105' Leads
Snap In Mounting Plate is Nylon
Attached to Housing
Rated 660W-600V
D02-D2692 Standard
D02-D2693 Disconnect
(Circuit Interrupting)
THIN, RAPID-START QUICKWIRE
LAMP HOLDER FOR T-8 & T-12
Mounting Bracket With Screw Inserted
Rated 660W-600V
D02-D3946

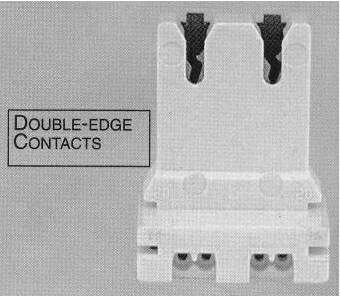

SLIDE-ON SELF-ALIGNING
LAMP HOLDER
FOR U-SHAPE LAMPS
Low Profile Body
Self Aligning Action
Completely Floats
Lamp Rated 660-600V
Double-Edge Contacts

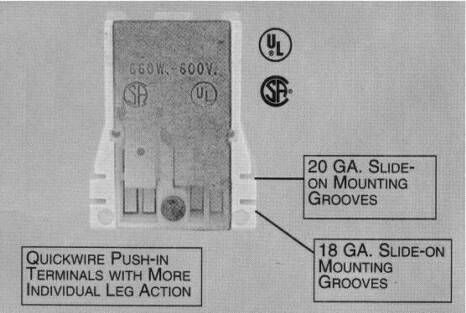

20 GA. Slide-Mounting Grooves
18 GA. Slide-On Mounting Grooves
QuickWire Push-In Terminals With More
Indvidual Leg Action
D02-D2694 Standard
D02-D2695 Disconnect (Circuit Interrupting)
D02-D3989 Shunted
