Twist-N-Lock

GU-24 Electronic Socket Ballast

Also see GU-24 Self-Blasting Compact Flourescent bulbs on page http://www.rcchre.com/CatPages/ADL/Bulbs/B123.html

Lighting Parts Catalog

   HRE Home    About Us    Contact Us    How To and Information    Order Form   Prices    Search Our Web Site    Links

http://twitter.com/rcchre

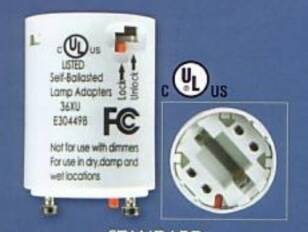

Sun Lite Standard

Dimensions (Not including pins)

Height 2" •  Diameter 1-1/2" White with Locking Pin 120 Volt 60 Hz UL listed Non-Dimmable Class P Type 1 Outdoors

Item Number

D02-D352013 Watt  G24q-1/Gx24q-1

D02-D352218 Watt  G24q-2/Gx24q-2

D02-D352426 Watt  G24q-3/Gx24q-3

ADL Short

Dimensions (Not including pins)

Height 1 1/2" •  Diameter 1-1/2" Ivory with Locking Tab 120 Volt 60 Hz UL listed Non-Dimmable Class P Type 1 Outdoors

Item Number

D02-D354218 Watt  G24q-2/Gx24q-2

D02-D354426 Watt  G24q-3/Gx24q-3

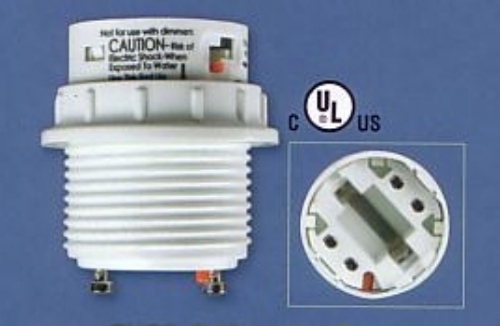

Sun Lite Threaded With Ring

Dimensions (Not including pins)

Height 2" •  Diameter 1-1/2" White with Locking Tab 120 Volt 60 Hz UL listed Non-Dimmable Class P Type 1 Outdoors

Item Number

D02-D353013 Watt  G24q-1/Gx24q-1

D02-D353218 Watt  G24q-2/Gx24q-2

D02-D353426 Watt  G24q-3/Gx24q-3

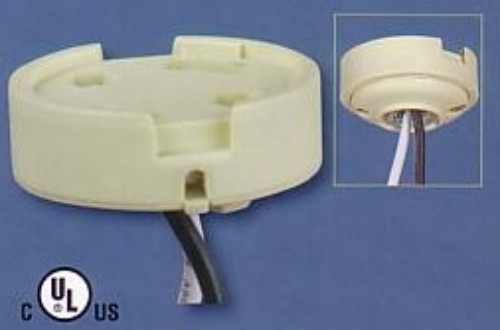

ADL Mounting Base

For GU-24 Socket Ballast

Height 1 1/16"

  Diameter 1-1/2"

Tapped 1/8 IP

Ivory with 18" AWM 105 Degree Leads

Rated 600V-600W

D02-D3517

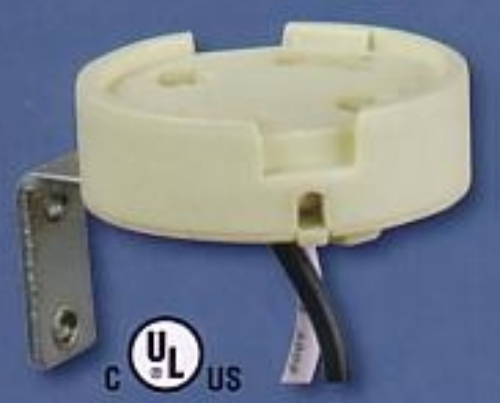

ADL Mounting Base

For GU-24 Socket Ballast

Height 1/2"

(Not Including bracket)

  Diameter 1-1/2"

With L bracket Ivory with 18" AWM 105 Degree Leads

Rated 600V-600W

D02-D3518

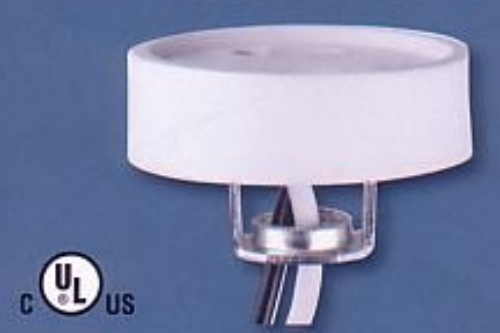

Mounting Base

For GU-24 Socket Ballast

Height 1/2"

(Not Including Hickey)

  Diameter 1-1/2"

Wtih Hickey Ivory with 18" AWM 105 Degree Leads

Rated 600V-600W

D02-D3519

Socket Ring Only

For D02-D3530 D02-D3532 D02-D3534

D02-D547

Last Page     Next Page

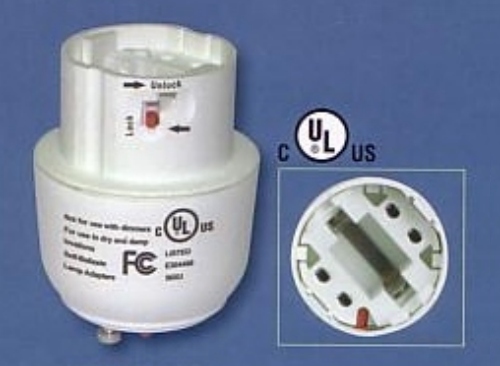

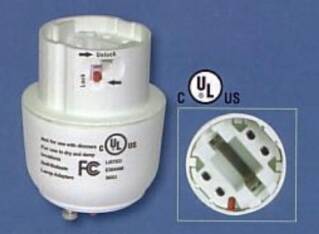

Sun Lite Standard

Dimensions (Not including pins)

Height 2 1/2" •  Diameter 2 1/4" White with Locking Pin 120 Volt 60 Hz UL listed Non-Dimmable Class P Type 1 Outdoors

Item Number

D02-D355226 Watt  G24q-3/Gx24q-3

D02-D355332 Watt  G24q-3/Gx24q-3

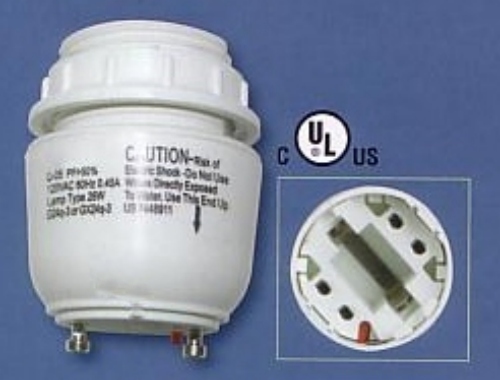

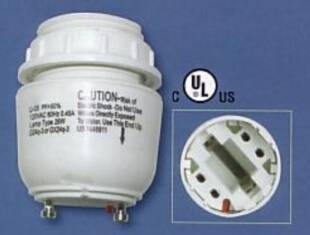

Sun Lite Threaded With Ring

Dimensions (Not including pins)

Height 2 1/2" •  Diameter 2 1/4" White with Locking Pin 120 Volt 60 Hz UL listed Non-Dimmable Class P Type 1 Outdoors

Item Number

D02-D355426 Watt  G24q-3/Gx24q-3

D02-D355532 Watt  G24q-3/Gx24q-3

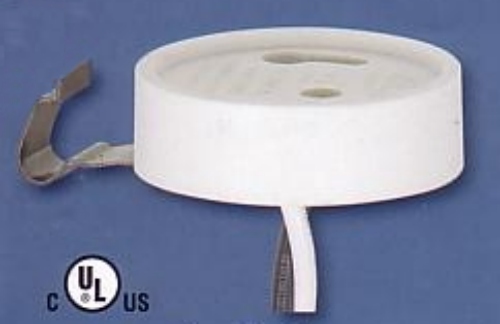

Mounting Base

Non-Locking

For GU-24 Socket Ballast

and Self-Ballasted Bulbs

Height 1"

  Diameter 1 1/2"

With 90 degree clip-in

White with 18" AWM 105 Degree Leads

D02-D3511

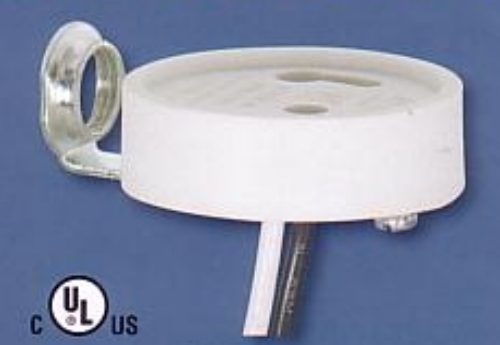

Mounting Base

Non-Locking

For GU-24 Socket Ballast

and Self-Ballasted Bulbs

Height 1"

  Diameter 1 1/2"

With 90 degree 1/8 IP Hickey

White with 18" AWM 105 Degree Leads

D02-D3512

Mounting Base

Sun Lite Locking

For GU-24 Socket Ballast

and Self-Ballasted Bulbs

Height 1"

  Diameter 1 1/2"

Tapped 1/8 IP

White with 18" AWM 105 Degree Leads

D02-D3513

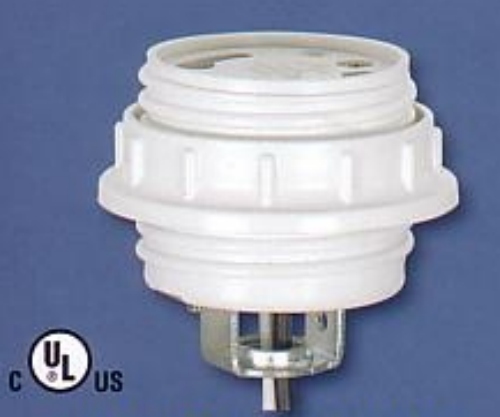

Mounting Base Threaded

Sun Lite Locking

For GU-24 Socket Ballast

and Self-Ballasted Bulbs

Height 1 1/2"

  Diameter 1 1/2"

1/8 IP Hickey

White with 18" AWM 105 Degree Leads

D02-D3514

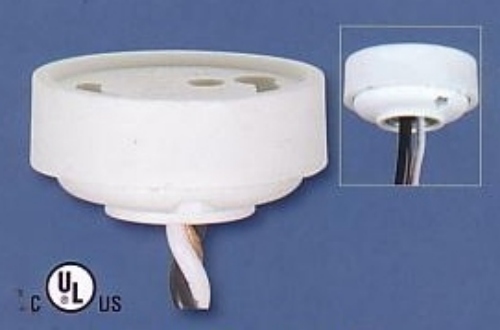

Mounting Base

Non-Locking

For GU-24 Socket Ballast

and Self-Ballasted Bulbs

Height 1"

  Diameter 1 1/2"

Tapped 1/8 IP

White with 18" AWM 105 Degree Leads with Ground

Rated 600V-600W

D02-D3516

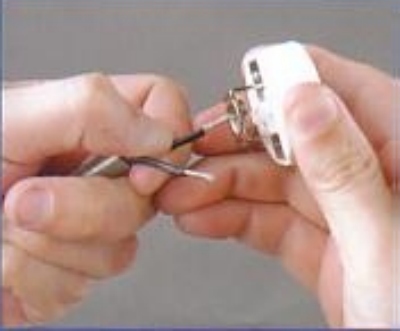

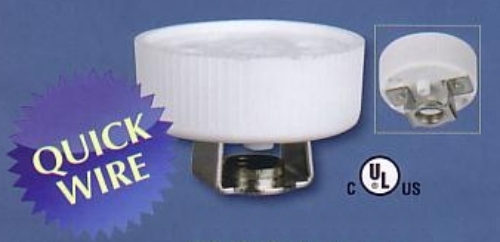

Mounting Base

Non-Locking

For GU-24 Socket Ballast

Height 1/2"  (Not Including Hickey) Diameter 1-1/2"

Wtih Hickey White with Quick Connect Terminals

Rated 600V-600W

D02-D3525
