Wire Connectors
FOR 1O5° SUPPLY WIRE
Hi HEAT PLASTIC
FOR 150° SUPPLY WIRE
WITH SPRING INSERT
This page was last updated: September 27, 2010

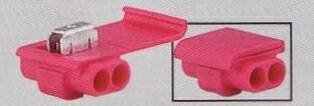

For Use With Solid
Or Stranded 16-22 GA.
Red

D02-B1760
YELLOW
Rated up to 3-#18 Max
105Deg  600V

D02-B1770
SMALL
Rated Up to 2-#16
300V

D02-B1745

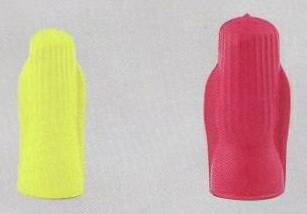

YELLOW Rated 1000V

D02-B1777
All Wire Connectors on this page are U.L. Listed & CSA Certified.

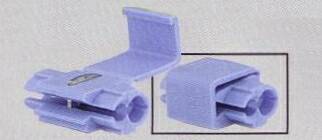

Buss Bar Type
Connector 14-18 GA.
Blue

D02-B1765
MEDIUM
Rated Up to 5-#18
300V

D02-B1748

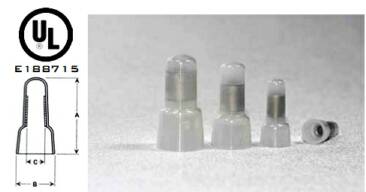

CRIMP ON CONNECTORS
FOR 1O5° SUPPLY WIRE
CRIMP-ON
Rated  105 Degree 300V

G04-GCE-1      Up to 2-#18
D02-B1750      GCE-2  Up to 4-#18
D02-B1755      GCE-5 Up to 6-#18
G04-GCE-8      Up to 8-#18
RED
Rated 1000VD02-B1778
SCOTCH-LOC CONNECTORS
FOR 105° SUPPLY WIRE
WITH SPRING INSERT

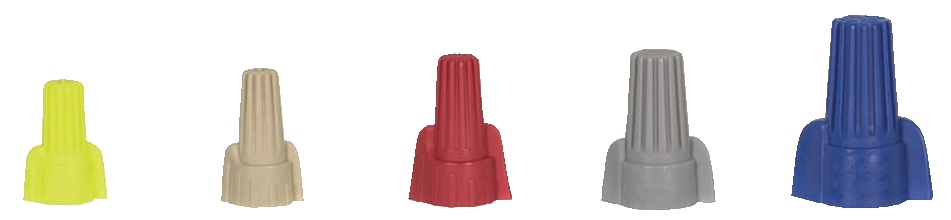

WING NUT WIRE CONNECTORS
FOR 105° SUPPLY WIRE
WITH SPRING INSERT
RED
Rated up to 5-#16 Max
105Deg  600V

D02-B1775
Page
H069
Rands Creative Creations
Harold Rand Enterprises
3729 Freeman Rd
Jacksonville FL 32207
904 398 7925
800 255 8052
cs@hrelampparts.com
Buss Bar Tap and Run Type
Run 12-10 GA. Tap 14-18 GA.
Yellow

G04-GQS-Y10V
Best if viewed with 1024 resolution!!!!
TAN
Rated up to 9-#18 Max
105Deg  600V

S05-90-2238
Grey
Rated up to 4-#12 Max
105Deg  600V

S05-90-2240
Blue
Rated up to 4-#10 Max
105Deg  600V

S05-90-2241
