Zinc Plated Bracket/Cross Bars
This page was last updated: August 19, 2017

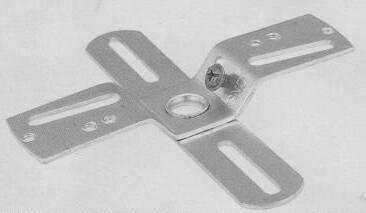

ADJUSTABLE COMBINATION BRACKET BAR
Length 4-3/16"
Screw Holes 2-3/16", 2-3/4", 2-15/16" C. to C.*
Tapped #8-32
Revolves 360 Degrees
Ground Screw Inserted

D02-2-639

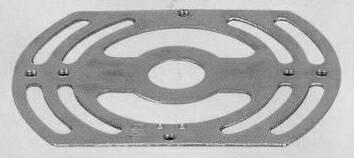

4" UNIVERSAL CROSS BAR
Slips 3/8 IP

D02-2-4635

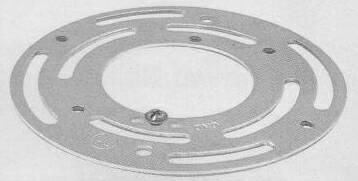

4" UNIVERSAL CIRCLE CROSS BAR

D02-2-637

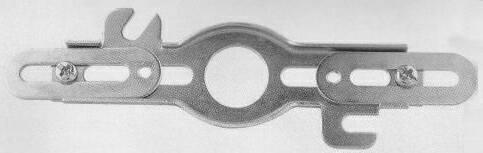

E-Z ADJUSTABLE CROSS BAR
Slips Over 3/8 IPS Pipe
Adjusts From 4-1/2" to 6-1/2" C. to C.*

D02-2-638
CUP WASHER FOR
GROUND SCREW

D02-2-629
ROUND GREEN GROUND
SCREW
Threaded #8-32

D02-2-628
*C. to C. is an abbreviation for center to center.
H070-1
Page

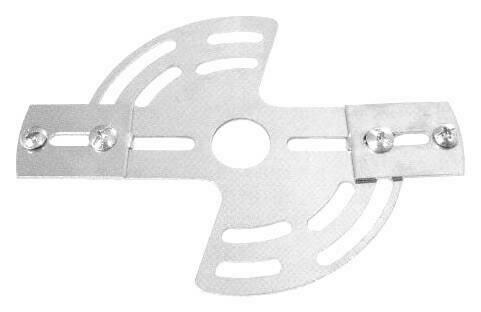

4" ALL PURPOSE CROSS BAR
Adjusts from 3 7/8" to 5"
Slips 3/8 IP

B02-C2882

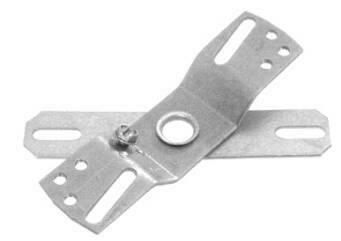

ADJUSTABLE COMBINATION BRACKET BAR
Length 4-3/16"
Screw Holes 2-3/4", 3- 3/8", 3-1/2" C. to C.*
Tapped #8-32
Revolves 360 Degrees
Ground Screw Inserted

B02-C2884
HEX GREEN GROUND
SCREW
Threaded #8-32

M02-S70

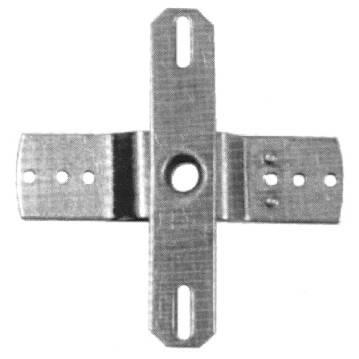

ADJUSTABLE COMBINATION BRACKET BAR
Length 3-7/8"
Screw Holes ", ", " C. to C.*
Tapped #8-32
Revolves 360 Degrees

H02-C205UNF
