Nipples Hex Flange, Stop and Coupler Hex
This page was last updated: October 10, 2017
1/8M x 1/8M
Length 3/8"
5/32" Thread
Length on Each Side

D02-2-74
BRASS SHOULDER NIPPLES
1/8M x 1/8M
Length 1/2"
5/16" Thread One Side
1/8" Thread Other Side

D02-2-82
HEX FLANGE NIPPLES & COUPLINGS
BRASS SMALL HEAD FLANGE NIPPLE
Hex Head Size 13/32"
Shank 3/8" • Overall 7/16"
Threaded 1/8 IPS Male
Solid Brass

D02-2-75

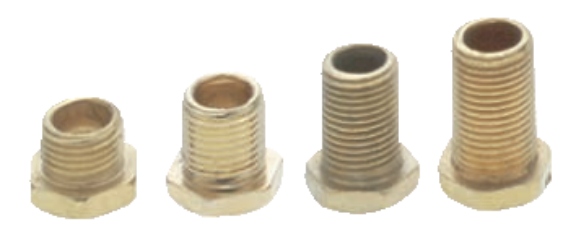

STEEL HEX NIPPLE
Hex Head Size 1/2"
Threaded 1/8 IPS Male
Zinc Plated

S05-9A636    Shank 1/8" • Overall 1/4"
S05-9A637    Shank 1/4" • Overall 3/8"
D02-2-830      Shank 3/8" • Overall 1/2"
D02-2-831      Shank 1/2" • Overall 5/8"

BRASS HEX HEAD COUPLING
Hex Head Size 1/2"
Unfinished Brass
Tap 1/8 IPS All Through

D02-2-1210 Height 1/2"
D02-2-1215 Height 3/4"
Page
H080-1
1/8M x 1/8M
Length 1/2"
3/16" Thread
Length on Each Side

B02-C3343
BRASS SMALL HEAD FLANGE NIPPLE
Hex Head Size 1/2"
Threaded 1/8 IPS Male
Solid Brass

B02-C2344     Shank 3/8" • Overall 1/2"
K02-H4369     Shank 5/8" • Overall 3/4"
Best if viewed with 1024 resolution!!!!
1/8M x 1/8M
Length 1/2"
7/32" Thread
Length on Each Side

D03-E7222
