Brass Cluster Bodies And Assemblies
This page was last updated: October 15, 2017

2-PIECE SMALL
CLUSTER BODY
Diameter 1-1/8" • Height 1-1/8"
Turned Brass
Side Holes Tapped 1/8 IPS

Top Cap Center Hole & Bottom Tapped 1/8 IPS
Antiqued      Brushed         Polished       Unfinished    #Side Holes
---------------------Lacquered--------------------------
D02-1-600AL  D02-1-600BL   D02-1-600PL   D02-1-600             0
D02-1-601AL  D02-1-601BL   D02-1-601PL   D02-1-601             2
D02-1-602AL  D02-1-602BL   D02-1-602PL   D02-1-602             3
D02-1-603AL  D02-1-603BL   D02-1-603PL   D02-1-603             4

Top Cap Center Hole Tapped 1/8 IPS Bottom Tapped 1/4 IPS
Antiqued      Brushed       Polished      Unfinished    #Side Holes
---------------------Lacquered--------------------------
D02-1-604AL  D02-1-604BL   D02-1-604PL   D02-1-604            2

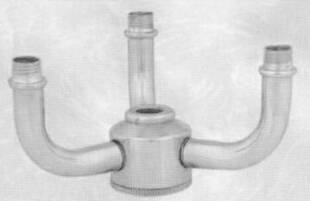

SOLID BRASS BODY WITH ARMS
Cluster Body Arms Positioned for Hanging Fixture
Diameter/Spread 3-1/2"
Arms Thread 1/8 IP Male Lenght 1/4"

Cap Center Hole & Bottom Tapped 1/8 IPS
Antiqued         Brushed         Polished         Unfinished    #of Arms
---------------------Lacquered--------------------------
D02-1-601-1AL  D02-1-601-1BL  D02-1-601-1PL   D02-1-601-1          2
D02-1-658AL     D02-1-658BL     D02-1-658          D02-1-602-1          3
D02-1-603-1AL  D02-1-603-1BL   D02-1-603-1PL   D02-1-603-1         4

Cap Center Hole Tapped 1/8 IPS Bottom Tapped 1/4 IPS
Antiqued         Brushed         Polished         Unfinished    #of Arms
---------------------Lacquered--------------------------
D02-1-604-1AL  D02-1-604-1BL  D02-1-604-1PL  D02-1-604-1   2

Arms pointing to removeable cap
Positioned For Lamp or Sconce Use
Cap Center Hole & Bottom Tapped 1/8 IPS
Antiqued         Brushed          Polished         Unfinished    #of Arms
---------------------Lacquered--------------------------
D02-1-601-2AL   D02-1-601-2BL  D02-1-601-2PL   D02-1-601-2          2
D02-1-602-2AL   D02-1-602-2BL  D02-1-602-2PL   D02-1-602-2          3
D02-1-603-2AL   D02-1-603-2BL  D02-1-603-2PL   D02-1-603-2          4

Cap Center Hole Tapped 1/8 IPS Bottom Tapped 1/4 IPS
Antiqued         Brushed           Polished          Unfinished    #of Arms
---------------------Lacquered--------------------------
D02-1-604-2AL   D02-1-604-2BL   D02-1-604-2PL   D02-1-604-2   2
Page
H108

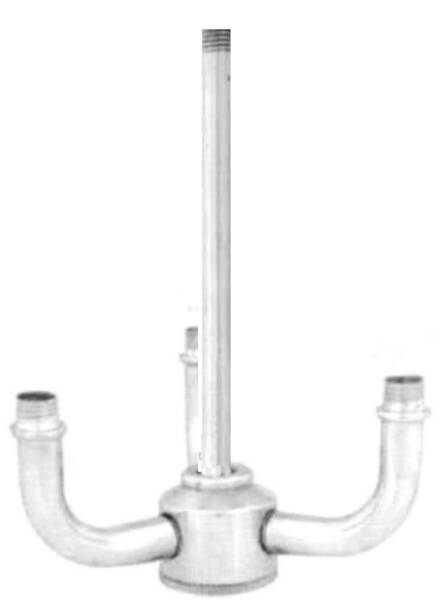

SOLID BRASS BODY WITH ARMS
Cluster Body Arms Positioned for Hanging Fixture
Diameter/Spread 3-1/2"
Stem Brass Pipe 12 3/4" End 1/4" Threaded 1/8 IP or 1/4 IP
Arms Thread 1/8 IP Male Lenght 1/4"

Cap Center Hole & Bottom Tapped 1/8 IPS
Antiqued           Brushed              Polished             Unfinished   #of Arms
--------------------------Lacquered-------------------------------
D02-1-601-3AL    D02-1-601-3BL   D02-1-601-3PL     D02-1-601-3     2
D02-1-602-3AL    D02-1-602-3BL   D02-1-602-3PL     D02-1-602-3     3
D02-1-603-3AL    D02-1-603-3BL   D02-1-603-3PL     D02-1-603-3     4

Cap Center Hole Tapped 1/8 IPS Bottom Tapped 1/4 IPS
Antiqued           Brushed             Polished            Unfinished   #of Arms
---------------------Lacquered--------------------------
D02-1-604-3AL   D02-1-604-3BL   D02-1-604-3PL    D02-1-604-3       2

Arms pointing to removeable cap
Positioned For Lamp or Sconce Use
Cap Center Hole & Bottom Tapped 1/8 IPS
Antiqued           Brushed             Polished            Unfinished    #of Arms
---------------------Lacquered--------------------------
D02-1-601-4AL   D02-1-601-4BL   D02-1-601-4PL    D02-1-601-4       2
D02-1-602-4AL   D02-1-602-4BL   D02-1-602-4PL    D02-1-602-4       3
D02-1-603-4AL   D02-1-603-4BL   D02-1-603-4PL    D02-1-603-4       4

Cap Center Hole Tapped 1/8 IPS Bottom Tapped 1/4 IPS
Antiqued          Brushed             Polished           Unfinished    #of Arms
---------------------Lacquered--------------------------
D02-1-604-4AL  D02-1-604-4BL   D02-1-604-4PL   D02-1-604-4   2

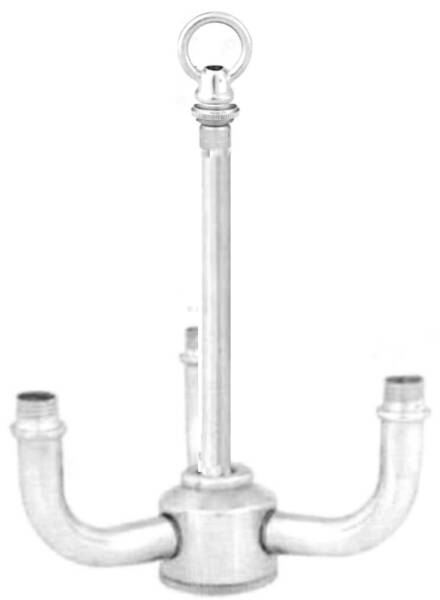

SOLID BRASS BODY WITH ARMS
Cluster Body Arms Positioned for Hanging Fixture
Diameter/Spread 3-1/2"
Stem Brass Pipe 12 3/4" End 1/4" Threaded 1/8 IP or 1/4 IP
Hang Straight and 1" loop
Arms Thread 1/8 IP Male Lenght 1/4"

Cap Center Hole & Bottom Tapped 1/8 IPS
Antiqued            Brushed             Polished            Unfinished   #of Arms
---------------------Lacquered--------------------------
D02-1-601-5AL    D02-1-601-5BL   D02-1-601-5PL     D02-1-601-5     2
D02-1-602-5AL    D02-1-602-5BL   D02-1-602-5PL     D02-1-602-5     3
D02-1-603-5AL    D02-1-603-5BL   D02-1-603-5PL     D02-1-603-5     4

Cap Center Hole Tapped 1/8 IPS Bottom Tapped 1/4 IPS
Antiqued           Brushed             Polished            Unfinished   #of Arms
---------------------Lacquered--------------------------
D02-1-604-5AL   D02-1-604-5BL   D02-1-604-5PL    D02-1-604-5       2

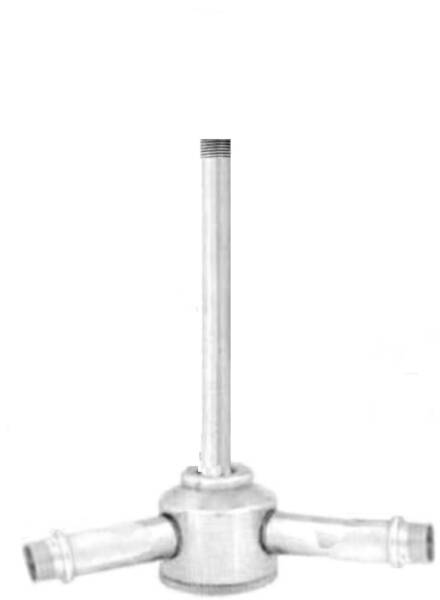

SOLID BRASS BODY WITH ARMS
Cluster Body Arms Striaght out use for Hanging Fixture or lamp
Diameter/Spread 3-1/2"
Stem Brass Pipe 12 3/4" End 1/4" Threaded 1/8 IP or 1/4 IP
Arms Thread 1/8 IP Male Lenght 1/4"

Cap Center Hole & Bottom Tapped 1/8 IPS
Antiqued            Brushed             Polished             Unfinished   #of Arms
---------------------Lacquered--------------------------
D02-1-601-6AL    D02-1-601-6BL   D02-1-601-6PL     D02-1-601-6     2
D02-1-602-6AL    D02-1-602-6BL   D02-1-602-6PL     D02-1-602-6     3
D02-1-603-6AL    D02-1-603-6BL   D02-1-603-6PL     D02-1-603-6     4

Cap Center Hole Tapped 1/8 IPS Bottom Tapped 1/4 IPS
Antiqued           Brushed             Polished            Unfinished   #of Arms
---------------------Lacquered--------------------------
D02-1-604-6AL   D02-1-604-6BL   D02-1-604-6PL    D02-1-604-6       2

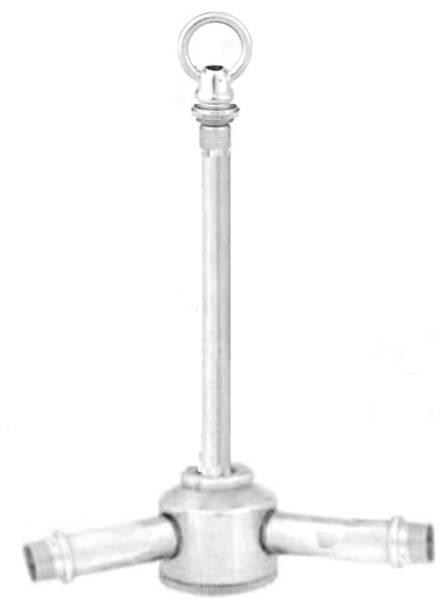

SOLID BRASS BODY WITH ARMS
Cluster Body Arms Striaght out Positioned for Hanging Fixture
Diameter/Spread 3-1/2"
Stem Brass Pipe 12 3/4" End 1/4" Threaded 1/8 IP or 1/4 IP
Hang Straight and 1" loop
Arms Thread 1/8 IP Male Lenght 1/4"

Cap Center Hole & Bottom Tapped 1/8 IPS
Antiqued            Brushed             Polished             Unfinished   #of Arms
---------------------Lacquered--------------------------
D02-1-601-7AL    D02-1-601-7BL    D02-1-601-7PL    D02-1-601-7     2
D02-1-602-7AL    D02-1-602-7BL    D02-1-602-7PL    D02-1-602-7     3
D02-1-603-7AL    D02-1-603-7BL    D02-1-603-7PL    D02-1-603-7     4

Cap Center Hole Tapped 1/8 IPS Bottom Tapped 1/4 IPS
Antiqued            Brushed            Polished             Unfinished   #of Arms
---------------------Lacquered--------------------------
D02-1-604-7AL    D02-1-604-7BL   D02-1-604-7PL    D02-1-604-7       2
Other combinations, and finishes may be available or produced e-mail cs@hrelampparts.com your specifications and we will obtain a quote for you!!!
