Brass Cluster Bodies And Assemblies
This page was last updated: October 4, 2017
2-PIECE COLONIAL
CLUSTER BODY
Height 1-9/16"  Diameter 1-1/2"
Turned Brass

Side Holes Tapped 1/8 IPS  Top & Bottom Tapped 1/8 IPS
Antiqued       Brushed       Polished        Unfinished  #of Side holes
---------------------Lacquered-------------------
D02-1-630AL    D02-1-630BL   D02-1-630PL    D02-1-630            0
D02-1-632AL    D02-1-632BL   D02-1-632PL    D02-1-632            2
D02-1-633AL    D02-1-633BL   D02-1-633PL    D02-1-633            3
D02-1-638AL    D02-1-638BL   D02-1-638PL    D02-1-638            4
D02-1-639AL    D02-1-639BL   D02-1-639PL    D02-1-639            5
D02-1-640AL    D02-1-640BL   D02-1-640PL    D02-1-640            6

Side Holes  1/8 IPS Top  1/8 IPS Bottom Tapped 1/4 IPS
Antiqued         Brushed       Polished        Unfinished  #of Side holes
---------------------Lacquered-------------------
B02-B0450AL   B02-B0450BL   B02-B0450PL   B02-B0450       2
D02-1-637AL    D02-1-637BL    D02-1-637PL     D02-1-637        3
B02-B0452AL   B02-B0452BL   B02-B0452PL   B02-B0452       4


Side Holes 1/4 IPS Top Tapped 1/8 IPS Bottom Tapped 1/4 IPS
Antiqued       Brushed        Polished        Unfinished  #of Side holes
---------------------Lacquered-------------------
D02-1-641AL   D02-1-641BL   D02-1-641PL    D02-1-641            4
Page
H108-1

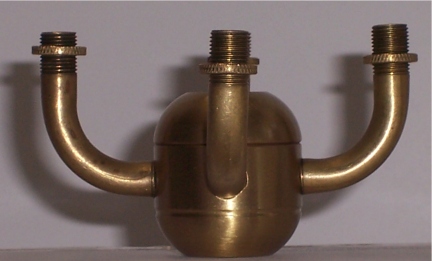

SOLID BRASS COLONIAL WITH ARMS
Cluster Body Arms Positioned for Hanging Fixture
Diameter/Spread 3-5/8"
Arms Thread 1/8 IP Male Length 1/4"

Cap Center Hole & Bottom Tapped 1/8 IPS
Antiqued              Brushed           Polished           Unfinished    #of Arms
---------------------------Lacquered--------------------------
D02-1-632-AAL    D02-1-632-ABL   D02-1-632-APL    D02-1-632-A          2
D02-1-633-AAL    D02-1-633-ABL   D02-1-633-APL    D02-1-633-A          3
D02-1-638-AAL    D02-1-638-ABL   D02-1-638-APL    D02-1-638-A          4
D02-1-639-AAL    D02-1-639-ABL   D02-1-639-APL    D02-1-639-A          5
D02-1-640-AAL    D02-1-640-ABL   D02-1-640-APL    D02-1-640-A          6


Cap Center Hole Tapped 1/8 IPS Bottom Tapped 1/4 IPS
Antiqued             Brushed            Polished           Unfinished    #of Arms
---------------------------Lacquered--------------------------
B02-B0450-AAL  B02-B0450-ABL  B02-B0450-APL   B02-B0450-AA           2
D02-1-637-AAL   D02-1-637-ABL    D02-1-637-APL    D02-1-637-A       3
B02-B0452-AAL  B02-B0452-ABL  B02-B0452-APL   B02-B0452-AA           4

Arms pointing to removable cap
Positioned For Lamp or Sconce Use

Cap Center Hole & Top Tapped 1/8 IPS
Antiqued          Brushed           Polished           Unfinished    #of Arms
-----------------------Lacquered----------------------------
D02-1-632-BAL    D02-1-632-BBL   D02-1-632-BPL    D02-1-632-B             2
D02-1-633-BAL    D02-1-633-BBL   D02-1-633-BPL    D02-1-633-B             3
D02-1-638-BAL    D02-1-638-BBL   D02-1-638-BPL    D02-1-638-B             4
D02-1-639-BAL    D02-1-639-BBL   D02-1-639-BPL    D02-1-639-B             5
D02-1-640-BAL    D02-1-640-BBL   D02-1-640-BPL    D02-1-640-B             6

Cap Center Hole Tapped 1/8 IPS Top Tapped 1/4 IPS
Antiqued         Brushed            Polished           Unfinished       #of Arms
-----------------------Lacquered--------------------------
B02-B0450-BAL  B02-B0450-BBL   B02-B0450-BPL   B02-B0450-BA          2
D02-1-637-BAL   D02-1-637-BBL     D02-1-637-BPL    D02-1-637-B             3
B02-B0452-BAL  B02-B0452-BBL   B02-B0452-BPL   B02-B0452-BA          4

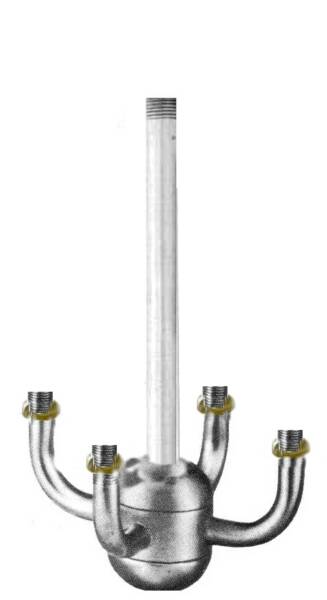

SOLID BRASS COLONIAL WITH ARMS
Cluster Body Arms Positioned for Hanging Fixture
Diameter/Spread 3-5/8"
Stem Brass Pipe 12 3/4" End 1/4" Threaded 1/8 IP or 1/4 IP
Arms Thread 1/8 IP Male Length 1/4"

Cap Center Hole & Bottom Tapped 1/8 IPS
Antiqued           Brushed           Polished            Unfinished    #of Arms
---------------------Lacquered--------------------------
D02-1-632A1AL    D02-1-632A1BL   D02-1-632A1PL    D02-1-632A12
D02-1-633A1AL    D02-1-633A1BL   D02-1-633A1PL    D02-1-633A13
D02-1-638A1AL    D02-1-638A1BL   D02-1-638A1PL    D02-1-638A14
D02-1-639A1AL    D02-1-639A1BL   D02-1-639A1PL    D02-1-639A15
D02-1-640A1AL    D02-1-640A1BL   D02-1-640A1PL    D02-1-640A16


Cap Center Hole Tapped 1/8 IPS Bottom Tapped 1/4 IPS
Antiqued             Brushed             Polished             Unfinished    #of Arms
---------------------Lacquered--------------------------
B02-B0450A1AL   B02-B0450A1BL   B02-B0450A1PL   B02-B0450A1       2
D02-1-637A1AL    D02-1-637A1BL    D02-1-637A1PL     D02-1-637A1        3
B02-B0452A1AL   B02-B0452A1BL   B02-B0452A1PL   B02-B0452A1       4

Arms pointing to removable cap
Positioned For Lamp or Sconce Use

Cap Center Hole & Top Tapped 1/8 IPS
Antiqued            Brushed             Polished            Unfinished    #of Arms
---------------------Lacquered--------------------------
D02-1-632B1AL    D02-1-632B1BL   D02-1-632B1PL    D02-1-632B12
D02-1-633B1AL    D02-1-633B1BL   D02-1-633B1PL    D02-1-633B13
D02-1-638B1AL    D02-1-638B1BL   D02-1-638B1PL    D02-1-638B14
D02-1-639B1AL    D02-1-639B1BL   D02-1-639B1PL    D02-1-639B15
D02-1-640B1AL    D02-1-640B1BL   D02-1-640B1PL    D02-1-640B16

Cap Center Hole Tapped 1/8 IPS Top Tapped 1/4 IPS
Antiqued              Brushed             Polished            Unfinished    #of Arms
---------------------Lacquered--------------------------
B02-B0450B1AL    B02-B0450B1BL   B02-B0450B1PL  B02-B0450B1      2
D02-1-637B1AL     D02-1-637B1BL    D02-1-637B1PL   D02-1-637B1        3
B02-B0452B1AL    B02-B0452B1BL   B02-B0452B1PL  B02-B0452B1      4

Other combinations may be available e-mail  cs@hrelampparts.com

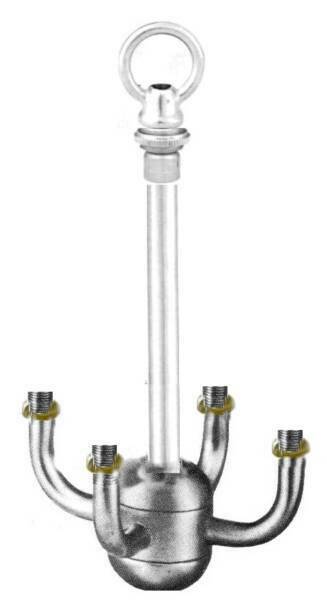

SOLID BRASS COLONIAL WITH ARMS
Cluster Body Arms Positioned for Hanging Fixture
Diameter/Spread 3-5/8"
Stem Brass Pipe 12 3/4" End 1/4" Threaded 1/8 IP or 1/4 IP
With Hang straight and 1" Loop
Arms Thread 1/8 IP Male Length 1/4"

Cap Center Hole & Bottom Tapped 1/8 IPS
Antiqued           Brushed            Polished          Unfinished    #of Arms
------------------------Lacquered-----------------------------
D02-1-632A2AL    D02-1-632A2BL    D02-1-632A2PL   D02-1-632A22
D02-1-633A2AL    D02-1-633A2BL    D02-1-633A2PL   D02-1-633A23
D02-1-638A2AL    D02-1-638A2BL    D02-1-638A2PL   D02-1-638A24
D02-1-639A2AL    D02-1-639A2BL    D02-1-639A2PL   D02-1-639A25
D02-1-640A2AL    D02-1-640A2BL    D02-1-640A2PL   D02-1-640A26


Cap Center Hole Tapped 1/8 IPS Bottom Tapped 1/4 IPS
Antiqued            Brushed             Polished            Unfinished    #of Arms
---------------------Lacquered--------------------------
B02-B0450A2AL   B02-B0450A2BL  B02-B0450A2PL    B02-B0450A2      2
D02-1-637A2AL    D02-1-637A2BL   D02-1-637A2PL      D02-1-637A23
B02-B0452A2AL   B02-B0452A2BL  B02-B0452A2PL    B02-B0452A2      4

Arms pointing to removable cap
Positioned For Lamp or Sconce Use

Cap Center Hole & Top Tapped 1/8 IPS
Antiqued           Brushed           Polished           Unfinished    #of Arms
---------------------Lacquered--------------------------
D02-1-632B2AL    D02-1-632B2BL   D02-1-632B2PL    D02-1-632B22
D02-1-633B2AL    D02-1-633B2BL   D02-1-633B2PL    D02-1-633B23
D02-1-638B2AL    D02-1-638B2BL   D02-1-638B2PL    D02-1-638B24
D02-1-639B2AL    D02-1-639B2BL   D02-1-639B2PL    D02-1-639B25
D02-1-640B2AL    D02-1-640B2BL   D02-1-640B2PL    D02-1-640B26

Cap Center Hole Tapped 1/8 IPS Top Tapped 1/4 IPS
Antiqued             Brushed              Polished            Unfinished  #of Arms
-----------------------Lacquered------------------------------
B02-B0450B2AL    B02-B0450B2BL   B02-B0450B2PL  B02-B0450B2      2
D02-1-637B2AL     D02-1-637B2BL     D02-1-637B2PL   D02-1-637B23
B02-B0452B2AL    B02-B0452B2BL   B02-B0452B2PL  B02-B0452B2      4

Other combinations may be available e-mail  cs@hrelampparts.com
Other combinations, and finishes may be available or produced e-mail cs@hrelampparts.com your specifications and we will obtain a quote for you!!!
