Cluster Bodies
This page was last updated: January 2, 2018
Nickel Plated Bodies and Covers for Crystal Chandeliers
You can use a 5" bobesche to cover the 3" bodies and a 6" bobesche to cover the 4" bodies

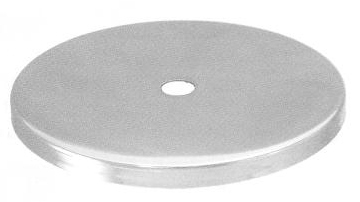

Nickel Plated Cover
No Arm Holes
Center Hole slips 1/8IP

B02-B1636N     3" Diameter
B02-B1641N     4" Diameter

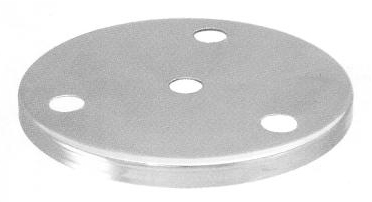

Nickel Plated Cover
3 Arm Holes
Center Hole slips 1/8IP

B02-B1637N     3" Diameter
B02-B1642N     4" Diameter

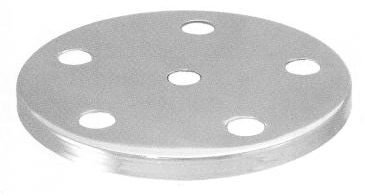

Nickel Plated Cover
5 Arm Holes
Center Hole slips 1/8IP

B02-B1643N     4" Diameter

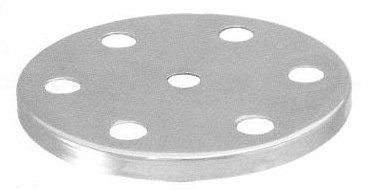

Nickel Plated Cover
6 Arm Holes
Center Hole slips 1/8IP

B02-B1643N     4" Diameter

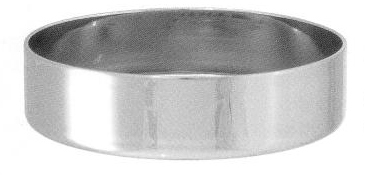

Nickel Plated Body
Open Top For mounting cover
Bottom Center Hole tapped 1/8IP Female

3" Diameter
B02-B1635N              No Side Holes
B02-B1635N-3H        3 Side Holes
B02-B1635N-4H        4 Side Holes
B02-B1635N-5H        5 Side Holes

4" Diameter
B02-B1640N              No Side Holes
B02-B1640N-3H        3 Side Holes
B02-B1640N-4H        4 Side Holes
B02-B1640N-5H        5 Side Holes

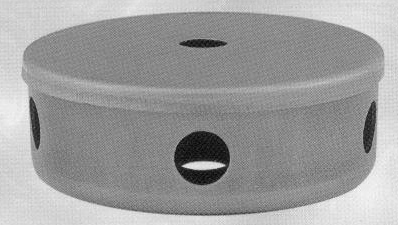

STAMPED STEEL 2-PIECE
CLUSTER BODY
3" Diameter
1 1/8" height
All Holes Slip 1/8 IP

3 Side Holes
D02-1-890               Unfinished
D02-1-890PT          Painted
D02-1-890GL         Gold Leafed
D02-1-890SAL       Silver (Aluminum) Leafed
D02-1-890SSL       Silver (sterling) Leafed

5 Side Holes
D02-1-891               Unfinished
D02-1-891PT          Painted
D02-1-891GL         Gold Leafed
D02-1-891SAL       Silver (Aluminum) Leafed
D02-1-891SSL       Silver (sterling) Leafed
Steel Side Hole Bodies with covers
Page
H135-1
