Cluster Head Assemblies
This page was last updated: March 27, 2019
4-HOLE BRASS PLATED STEEL
CANDLE BODY
Has 4 Top Holes
And 1 Bottom Hole
All Slip 1/8 IPS
Diameter 2-7/8"

D02-1-648                  Brass Plated (As shown)
D02-1-648BLK          Painted Black Satin or Gloss
D02-1-648BRZ          Painted Bronze Light Medium or Dark
D02-1-648WHT         Painted White Satin or Gloss

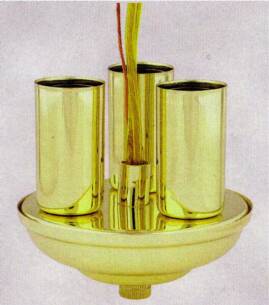

BRASS PLATED STEEL CANDELABRA BASE
3-LIGHT WIRED CLUSTER
Top Mount Coupling 1/8 IPS
Diameter 3-3/8"
Polished Brass Plated Candle Cups
72" SPT-1 and Ground

Top Mount Coupling 1/8 IPS
D02-1-652                   Brass Plated (As shown)
D02-1-652BLK          Painted Black Satin or Gloss
D02-1-652BRZ          Painted Bronze Light Medium or Dark
D02-1-652WHT         Painted White Satin or Gloss

Bottom Mount Coupling 1/8 IPS (Wires out Bottom)
D02-1-652REV              Brass Plated
D02-1-652REVBLK      Painted Black Satin or Gloss
D02-1-652REVBRZ      Painted Bronze Light Medium or Dark
D02-1-652REVWHT     Painted White Satin or Gloss

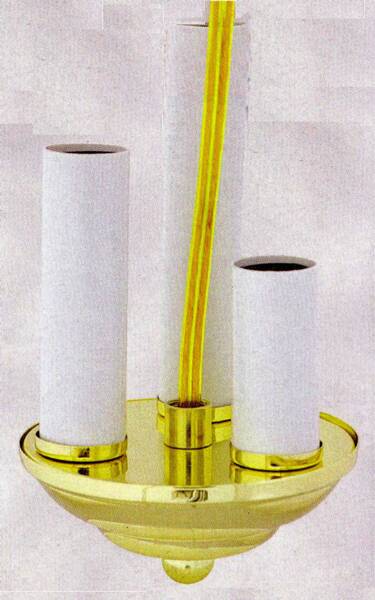

BRASS PLATED STEEL CANDELABRA BASE
3-LIGHT WIRED CLUSTER
Diameter 3-3/8"
Plain White Candle covers
HEIGHT 2", 3", & 4"
72" SPT-1 and Ground

Top Mount Coupling 1/8 IPS
D02-1-653                   Brass Plated (As shown)
D02-1-653BLK          Painted Black Satin or Gloss
D02-1-653BRZ          Painted Bronze light medium or Dark
D02-1-653WHT         Painted White Satin or Gloss

Bottom Mount Coupling 1/8 IPS (Wires out Bottom)
D02-1-653REV              Brass Plated
D02-1-653REVBLK      Painted Black Satin or Gloss
D02-1-653REVBRZ      Painted Bronze Light, Medium or Dark
D02-1-653REVWHT     Painted White Satin or Gloss
Other sizes can be quoted upon request
e-mail request to [email protected]
Best if viewed with 1024 resolution!!!!
H028
Page

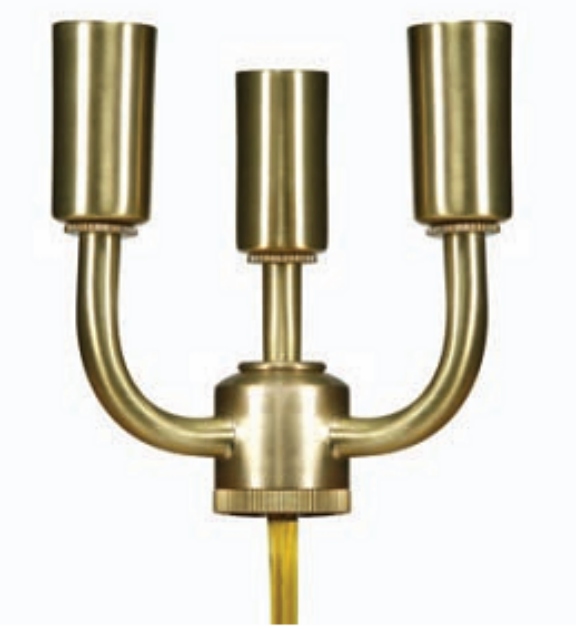

3 Light Candelabra Cluster Solid Brass
1/8IP Female Top and Bottom
With 8 Ft. SPT-2 Gold Wire

S05- 8A1797         Unfinished
S05- 8A1797AL    Antiqued and Lacq
S05- 8A1797BL    Brushed and Lacq
S05- 8A1797PL    Polished and Lacq
Also See Page H108, H108-1, H108-2 and H108-3
