Brass Figurine Arm Offset and Straight Pipe
H129-1
Page

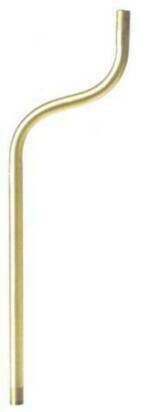

BRASS OFFSET FIGURINE ARMS
Threaded 1/8 IPS (O.D. 3/8")
Threaded Each End 1/2"

Arm SizeOffset
10" - 18"2 1/2"
20" - 24"               3"
Satin Brass
With Lacquered Finish
D02-1-20110"D02-1-20518"
D02-1-20212"D02-1-20620"
D02-1-20314"D02-1-20722"
D02-1-20416"D02-1-20824"


Unfinished Brass
D02-1-2108" D02-1-21518"
D02-1-21110"       D02-1-21620"
D02-1-21212"       D02-1-21722"
D02-1-21314"       D02-1-21824"
D02-1-21416"

Measurement includes the threaded ends
STEEL BRASS PLATED OFFSET FIGURINE ARMS
Threaded 1/8 IPS (O.D. 3/8")
Threaded 3/4" Bottom End 1/2" Top End

2 1/2" Offset          3 1/2" Offset

K02-H30115"K02-H32019"
K02-H30216"K02-H321111"
K02-H30317"K02-H322113"
K02-H30418"K02-H323114"
K02-H30519"K02-H324115"
K02-H306110"
K02-H307111"
K02-H308112"
K02-H309113"
K02-H310114"
K02-H311115"
K02-H312116"
K02-H313117"
K02-H314118"
K02-H315119"
K02-H316120"
G05-15IF21      21"
G05-15IF22      22"
G05-15IF23      23"
G05-15IF24      24"

Measurement includes the threaded ends

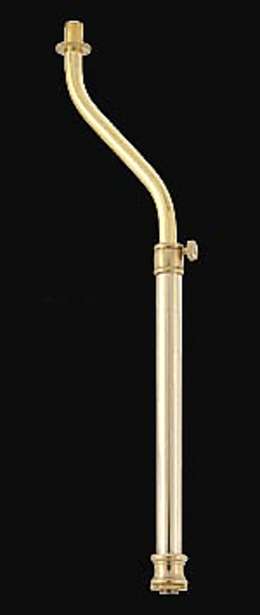

STEEL BRASS PLATED ADJUSTABLE FIGURINE ARMS
Threaded 1/8 IPS (O.D. 3/8") Threaded 1/2" Top End Offset pipe, Inside 1/4IP Straight Pipe with Reducing Coupler with Set Screw for adjusting and Reducing Coupler with 1/8IP Nipple for Mounting to Base


2 1/2" Offset Top 1/8 IP Pipe        3 1/2" Offset Top 1/8 IP Pipe
                            Adjustable                                           Adjustable
D03-E7173       10" to 13"                D03-E7173-3        11" to 13"
D03-E7173A     10" to 15"                D03-E7173A-3     11" to 15"
D03-E7173-1    15" to 20"                D03-E7173-1-3     16" to 20"

Measurement includes the threaded top
STEEL BRASS PLATED ADJUSTABLE FIGURINE PIPES
Threaded 1/8 IPS (O.D. 3/8") Threaded 3/4" Top End Straight Pipe, Inside 1/4IP Straight Pipe with Reducing Coupler with Set Screw for adjusting and Reducing Coupler with 1/8IP Nipple for Mounting to Base

                   Adjustable
D03-E7168      10" to 12"
D03-E7168-1    13" to 20"

Measurement includes the threaded top
Best if viewed with 1024 resolution!!!!
BRASS ADJUSTABLE FIGURINE ARMS
Threaded 1/8 IPS (O.D. 3/8") Threaded 1/2" Top End Offset pipe, Inside 1/4IP Straight Pipe with Reducing Coupler with Set Screw for adjusting and Reducing Coupler with 1/8IP Nipple for Mounting to Base

Antiqued               Polished              Satin                   Unfinished         2 1/2 OFFSET
-----------------------------Lacquered--------------------------------                                Length
D02-1-562-210AL    D02-1-562-210PL    D02-1-162-210SL    D02-1-562-210   10" to 13"
D02-1-562-211AL    D02-1-562-211PL     D02-1-162-202        D02-1-562-211   10" to 15"
D02-1-564-211AL    D02-1-564-211PL     D02-1-164-202        D02-1-564-211   12" to 17"
D02-1-568-211AL    D02-1-568-211PL    D02-1-168-201        D02-1-568-211   15" to 20"
D02-1-570-212AL    D02-1-570-212PL    D02-1-170-202        D02-1-570-212   21" to 30"

Measurement includes the threaded top
Other sizes may be custom made!
BRASS ADJUSTABLE FIGURINE ARMS
Threaded 1/8 IPS (O.D. 3/8") Threaded 1/2" Top End Offset pipe, Inside 1/4IP Straight Pipe with Reducing Coupler with Set Screw for adjusting and Reducing Coupler with 1/8IP Nipple for Mounting to Base

Antiqued               Polished              Satin                   Unfinished         Straight
-----------------------------Lacquered--------------------------------                                Length
D02-1-564-520AL    D02-1-564-520PL    D02-1-164-520        D02-1-564-520   10" to 15"
D02-1-568-520AL    D02-1-568-520PL    D02-1-168-520        D02-1-568-520   15" to 20"
D02-1-570-524AL    D02-1-570-524PL    D02-1-170-524        D02-1-570-5242   21" to 30"

Measurement includes the threaded top
Other sizes may be custom made!

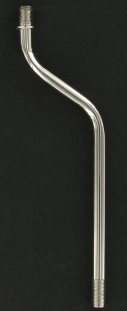

STEEL NICKEL PLATED OFFSET FIGURINE ARMS
Threaded 1/8 IPS (O.D. 3/8")
Threaded 3/4" Bottom End 1/2" Top End

      2 1/2" Offset

G05-15IF06NP6"
G05-15IF08NP8"
G05-15IF10NP10"
G05-15IF12NP12"
G05-15IF14NP14"
G05-15IF16NP16"

Measurement includes the threaded ends
