Pulse Rated Mogul Porcelain Sockets
This page was last updated: August 5, 2017

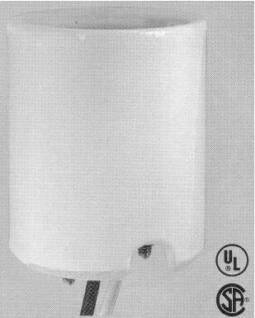

MOGUL BASE LAMP HOLDER
4 KV PULSE RATED
GLAZED PORCELAIN
FOR USE WITH HIGH INTENSITY
DISCHARGE LAMPS
LAMPS UP TO 400 WATTS
COPPER-ALLOY,
NICKEL PLATED SCREW SHELL
10" SF-2 200°
C-600V Wire Leads
Two #8-32 Captive Screws 1-3/8" Centers
Rated 1500W - 600V

D02-4-2610
MOGUL BASE LAMP HOLDER
5 KV PULSE RATED
GLAZED PORCELAIN
FOR USE WITH HIGH INTENSITY
DISCHARGE LAMPS
LAMPS UP TO 1000 WATTS
COPPER-ALLOY,
NICKEL PLATED SCREW SHELL
16" SF-2 200°
C-600V Wire Leads
Two #8-32 Captive Screws
1-3/8" Centers
Rated 1500W - 600V

D02-4-2615
Page
H018-1
Best if viewed with 1024 resolution!!!!

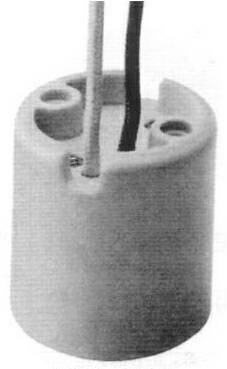

MOGUL BASE LAMP HOLDER
6 KV PULSE RATED
PORCELAIN
SF-2 200° leads
Rated 1500W - 600V

M02-11-8781S   (2)  #8-32  Nuts
M02-11-8781S   (2)  #8-32  Screws

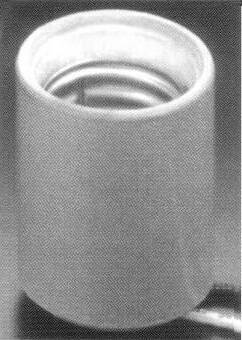

MOGUL BASE LAMP HOLDER
4 KV PULSE RATED
PORCELAIN
Specially designed for use with metal halide lamps. Mogul base metal halide lamps without the inner protective shield will not make contact with lamp holders center contact
#14 AWG SF-2 200° 12" leads
Rated 1500W - 600V

M02-11-8751   (2)  #8-32  Screws

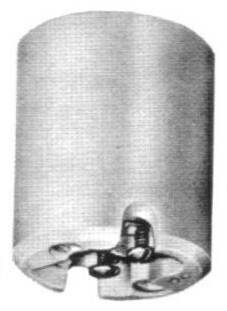

MOGUL BASE LAMP HOLDER
4 KV PULSE RATED
PORCELAIN
Screw Terminals
Rated 1500W - 600V

M02-11-8694   (2)  #8-32  Captive nuts
MOGUL BASE POSITION ORIENTED  LAMP HOLDER
PORCELAIN
Screw Terminals
Rated 1500W - 600V

M02-11-8750      (2)  #8-32  Captive screws
M02-11-8750-2   (2)  #8-32  Captive nuts
MOGUL BASE LAMP HOLDER
4 KV PULSE RATED
PORCELAIN
#14 AWG SF-2 200° Leads
Rated 1500W - 600V

H08-11H0470       (2)  #8-32  Captive nuts
M02-11-8756-2F   (2)  #8-32  Captive screws
MOGUL BASE LAMP HOLDER
5 KV PULSE RATED
PORCELAIN
#14 AWG SF-2 200° Leads

Rated 1500W - 600V

H08-11H636    (2)  #8-32  Captive nuts
M02-11-8746F  (2)  #8-32  Captive screws
