Electronic Flourescent WE GU24 Ballast & Holders
This page was last updated: August 16, 2017
Page
H054-1A
Best if viewed with 1024 resolution!!!!

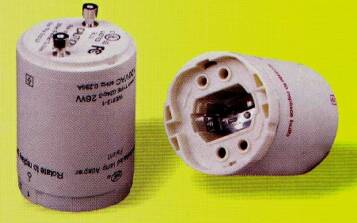

WE Standard Smooth Sides
Dimensions (Not including pins)
Height 2" •  Diameter 1-1/2" Ivory with Locking Tab UL listed Non-Dimmable Class P Type 1 Outdoors

120 Volt 60 Hz
Item Number
W05-WEB11-1     13 Watt  G24q-1/Gx24q-1
W05-WEB12-1     18 Watt  G24q-2/Gx24q-2
W05-WEB13-1     26 Watt  G24q-3/Gx24q-3

277 Volt 60 Hz
Item Number
W05-WEB1B-1     13 Watt  G24q-1/Gx24q-1
W05-WEB1C-1     18 Watt  G24q-2/Gx24q-2
W05-WEB1D-1     26 Watt  G24q-3/Gx24q-3
Twist-N-Lock
GU-24 Electronic Socket Ballast

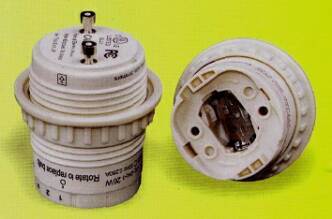

WE Threaded Sides With Ring
Dimensions (Not including pins)
Height 2" •  Diameter 1-1/2" Ivory with Locking Tab UL listed Non-Dimmable Class P Type 1 Outdoors

120 Volt 60 Hz
Item Number
W05-WEB11-2     13 Watt  G24q-1/Gx24q-1
W05-WEB12-2     18 Watt  G24q-2/Gx24q-2
W05-WEB13-2     26 Watt  G24q-3/Gx24q-3

277 Volt 60 Hz
Item Number
W05-WEB1B-2     13 Watt  G24q-1/Gx24q-1
W05-WEB1C-2     18 Watt  G24q-2/Gx24q-2
W05-WEB1D-2     26 Watt  G24q-3/Gx24q-3

Ring Only
W05-WEB-Ring

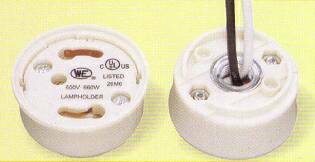

WE Mounting Base
GU-24 Socket
Tapped 1/8 IP

W05-WESS11-02    Quick Connect
W05-WESS12-02    18 AWG or 16 AWG AWM Wire

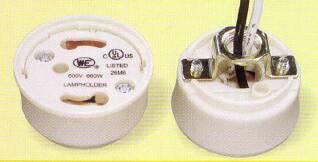

WE Mounting Base
GU-24 Socket
1/8 IP Hickey

W05-WESS11-01    Quick Connect
W05-WESS12-01    18 AWG or 16 AWG AWM Wire

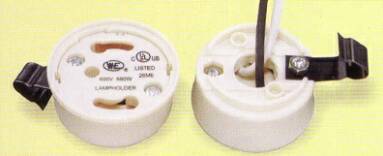

WE Mounting Base
GU-24 Socket
15 Degree Clip-in

W05-WESS11-03    Quick Connect
W05-WESS12-03    18 AWG or 16 AWG AWM Wire

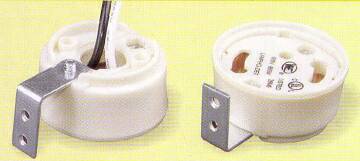

WE Mounting Base
GU-24 Socket
90 Degree Bracket W/2 #6-32 holes

W05-WESS11-04    Quick Connect
W05-WESS12-04    18 AWG or 16 AWG AWM Wire

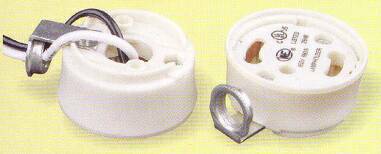

WE Mounting Base
GU-24 Socket
90 Degree Side Hickey 1/8 IP

W05-WESS11-05    Quick Connect
W05-WESS12-05    18 AWG or 16 AWG AWM Wire

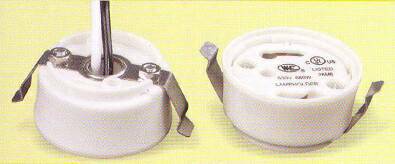

WE Mounting Base
GU-24 Socket
Rear Mount Clip-in

W05-WESS11-06    Quick Connect
W05-WESS12-06    18 AWG or 16 AWG AWM Wire
