Halogen Sockets
This page was last updated: September 24, 2018
PORCELAIN BI-PIN
HALOGEN SOCKET
With MR-16 Clip
Fits Multiple Lamp Bases
G4, G5.3, GX5.3 & G6.35
1/8 IPS Hickey
Silicone/Fiberglass 200°C
18 AWG SF-1 Leads

Rated 100W - 250V
D02-4-3996       10" Leads

Rated 1000W - 250V
S05-8A2019      8" Leads
PORCELAIN BI-PIN
HALOGEN SOCKET
Fits Multiple Lamp Bases
G4, G5.3, GX5.3 & G6.35
Rated 100W - 250V

Silicone/Fiberglass 200°C
18 AWG Leads
D02-4-2745           10" Leads
D02-4-2745/12"   12" Leads
D02-4-2745/18"   18" Leads
D02-4-2745/36"    36" Leads
D02-4-2745/48"    48" Leads

Teflon 200°C
18 AWG Leads
D02-4-2745T/20"   20" Leads
D02-4-2745T/36"   36" Leads

With Rust Free Contacts
D02-4-7745    22" Leads
PORCELAIN BI-PIN
HALOGEN SOCKET
Fits Multiple Lamp Bases
G4, G5.3, GX5.3 & G6.35
1/8 IPS Hickey
Rated 100W - 250V

Silicone/Fiberglass 200°C
18 AWG SF-1 Leads
D02-4-2751           10" Leads
D02-4-2751/12"   12" Leads
D02-4-2751/18"   18" Leads
D02-4-2751/36"   36" Leads
D02-4-2751/48"   48" Leads

Teflon 200°C
18 AWG Leads
D02-4-2751T/20"   20" Leads
D02-4-2751T36"    36" Leads

With Rust Free Contacts
D02-4-7745WH   22" Leads
PORCELAIN BI-PIN
HALOGEN SOCKET
With MR-11 Clip
G4, G5.3, GX5.3 & G6.35
1/8 IPS Hickey
Silicone/Fiberglass 200°C
SF-2 10" Leads
Rated 100W - 250V

D02-4-3780       1 1/8" O/H*
PORCELAIN BI-PIN
HALOGEN SOCKET
Fits G-8 Lamp Base Only
1/8 IPS Hickey
Silicone/Fiberglass 200°C
18 AWG 10" Leads
Rated 100W - 250V

D02-4-5901
Best if viewed with 1024 resolution!!!!
Page
H037
PORCELAIN BI-PIN
HALOGEN SOCKET
Fits G-8 Base Only
1/8 IPS Hickey
Silicone/Fiberglass 200°C
10" Leads
Rated 100W - 250V

D02-4-6425
PORCELAIN BI-PIN
HALOGEN SOCKET
Fits Multiple Lamp Bases
G4, G5.3, GX5.3 & G6.35
Rated 8A 24V Socket Temp = 250ºC

G03-E031/B          Quick Connect (Shown)
200°C
G03-E031/15/S     6" Silicon Wire Leads
G03-E031/15/TP  6" Teflon Wire Leads

With 1/8 IP Hickey
G03-E031/B/W          Quick Connect
200°C
G03-E031/15/S/W     6" Silicon Wire Leads
G03-E031/15/TP/W  6" Teflon Wire Leads

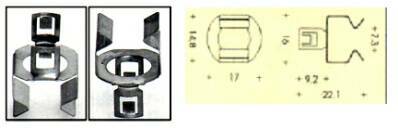

MR16 support.  Clips on G03-E031/B Socket.

G03-C08/F
PORCELAIN BI-PIN
HALOGEN SOCKET
Fits G-8 Base Only
1/8 IPS Hickey
Silicone/Fiberglass 200°C

M02-5-8F6
PORCELAIN - HALOGEN
LAMP HOLDER
G-4 BI-PIN High Heat Socket
SF-2 9" Leads
Rated 750W-250V 12A

D02-4-3991
PORCELAIN BI-PIN
HALOGEN SOCKET
Fits Multiple Lamp Bases
G5.3, GX5.3
5A 50V (BJB: 25.246.2001.00)


H08-9H0737          Quick Connect
                                (Shown)

With 1/8 IP Hickey
H08-9H0737/W     Quick Connect
Liquid Crystal Polymer BI-PIN
HALOGEN SOCKET
Fits Multiple Lamp Bases
G4, GZ4, G5.3, GX5.3, G6.35, GY6.35


H08-9H0380          Quick Connect
                                (Shown)

With 1/8 IP Hickey
H08-9H0380/W     Quick Connect
